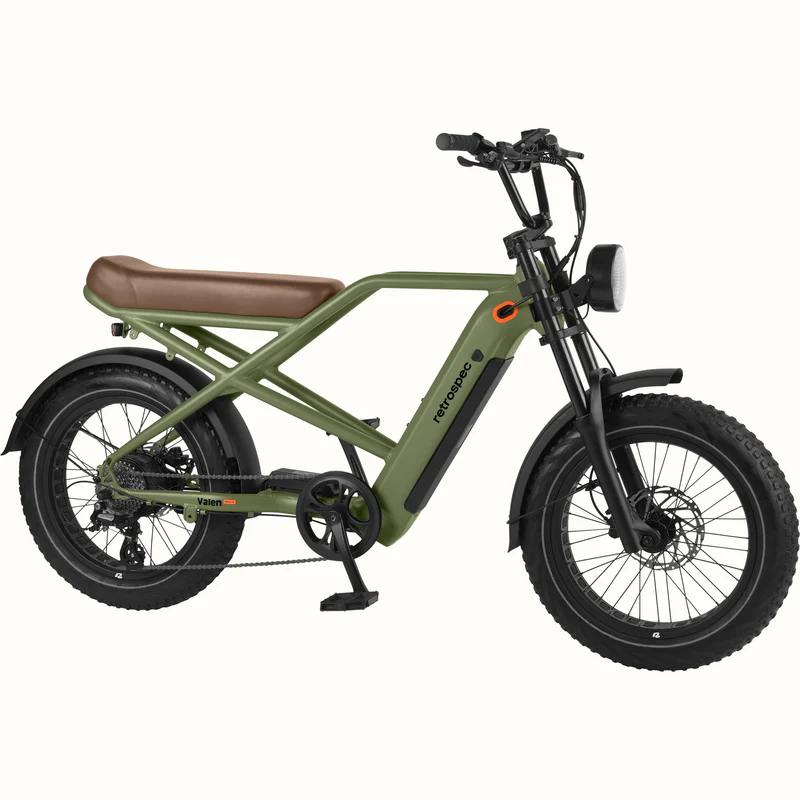

Valen Rev+ Fat Tire Electric Bike

$2,199.00

SKU: N/A Categories: , Brand:

THIS PRODUCT IS ONLY AVAILABLE FOR MIAMI-DADE

AT CHECK OUT CHOOSE FREE PICK UP

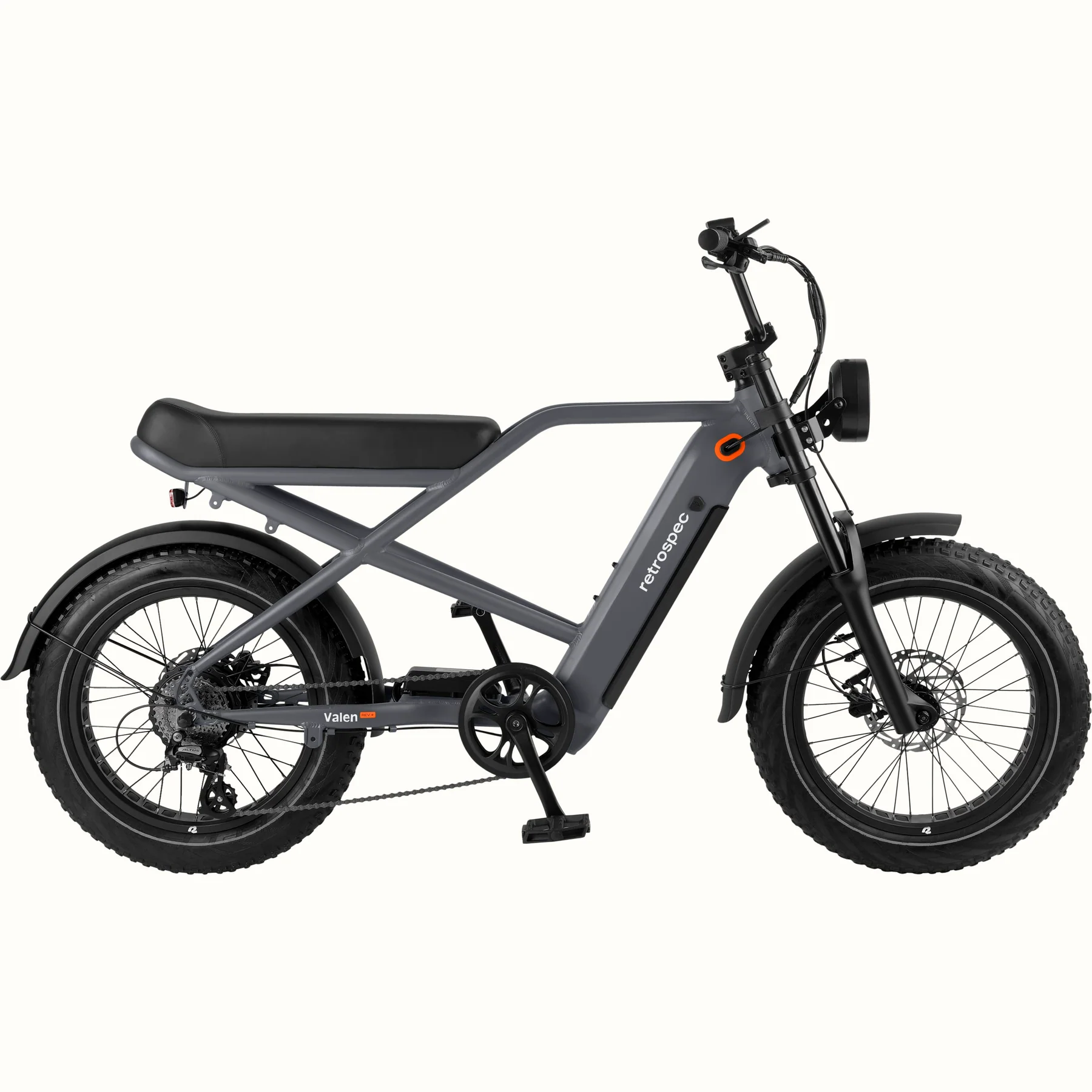

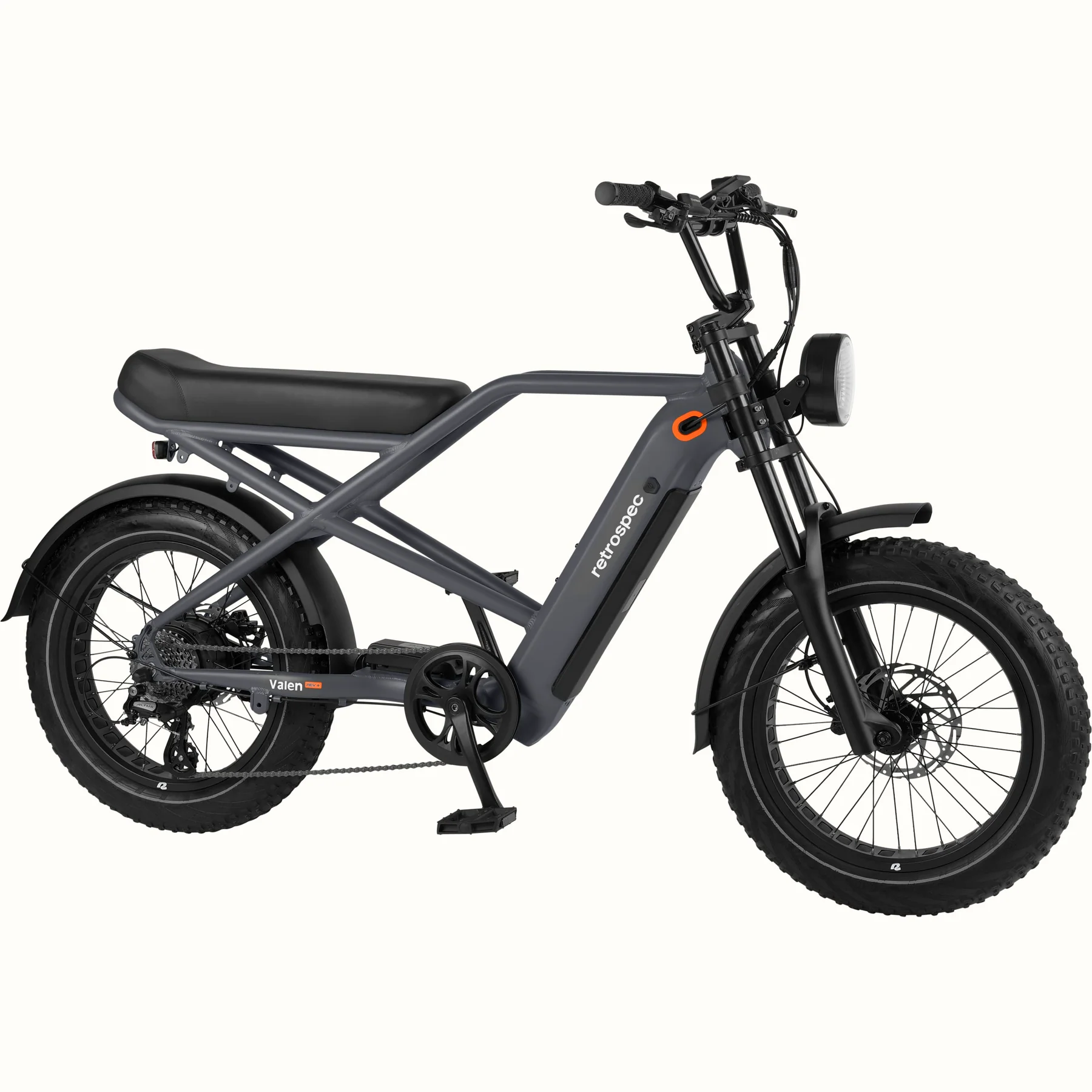

Valen Rev+ Fat Tire Electric Bike

Step Through & Regular

All terrain. Any adventure. Always down.
Off-road trails, tough-as-nails, wind in your sails. Whatever your thing is, Valen Rev+ is the only ebike that can match your boldness and accept the same challenges you would. Fully equipped with a powerful, integrated 720Wh battery, 750W motor, and range of up to 68 miles per charge, this do-it-all ebike can handle your longest, farthest, and most daring adventures. Pedal as much or as little as you’d like with a full throttle and 6 levels of Pedal Assist that can propel you up to 28mph; and with 4” puncture-protected fat tires and a 100mm suspension fork, you’ll effortlessly glide over any terrain as if the bumps and cracks aren’t even there. Feel free to blaze your own trails – roads are merely suggestions.
Specifications

Frameset

  • Sizes 1 size 20″
  • Material Valen 6061 hydroformed aluminum with, integrated downtube battery and replacable derailleur hanger.
  • Fork Triple Clamp with 100mm of travel

Wheelset

  • Rims 20″ single-wall aluminum 36H, for disck brake with cut-outs
  • Hubs F: Aluminum bolt-on with 17mm axle nuts. 36 hole
  • Spokes 13G w/brass nipples
  • Tires 20 x 4.0 Fat MTB with puncture protection and reflective sidewall

E-Power System

  • Motor 750W rear hub
  • Battery 720Wh/48VLG 21700 cells; Charge on or off bike
  • Display Center mounted color LCD
  • Charger 48V/2A
  • 48V/750W range Up to 68 miles
  • Pedal Assist 6 Levels, Throttle and walk-mode
  • UL Testing UL2849 & UL2271 Certified

Drivetrain

  • Rear Derailleur 8 speed Shimano Altus
  • Shifter 8 speed Shimano Rapidfire Plus
  • Crankset 3-Piece aluminum w/steel 38T chainrings with double alloy chainguard
  • Chain KMC 8 speed
  • BB Sealed cartridge
  • Freewheel/Cog Shimano 8 speed 11-34T

Components

  • Headset Threaded, steel, 1 1/8″ (28.6mm)
  • Brakes Tektro Hydraulic with 180mm ebike specific rotors and semi-metallic pads
  • Handlebars Steel BMX style
  • Grips Lock-on comfort grips.
  • Stem BMX Die Cast Alloy 22.2mm clamp
  • Saddle Retrospec Custom 2-piece Moto
  • Pedals Alloy Platform

Extras

  • Kickstand Alloy chainstay mount
  • Bottle Cage Alum alloy
  • Item Weight 72 lbs (battery included)
  • Recommended Weight Limit 350lbs
Sizing
How to measure my inseam for a bike

Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here’s how they work:

  1. Stand upright with your feet 6-8″ apart.
  2. Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
  3. Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
  • ARider Height
  • BInseam
  • CTop Tube
Size Height Range Standover Height
20″ 30.5″
Features

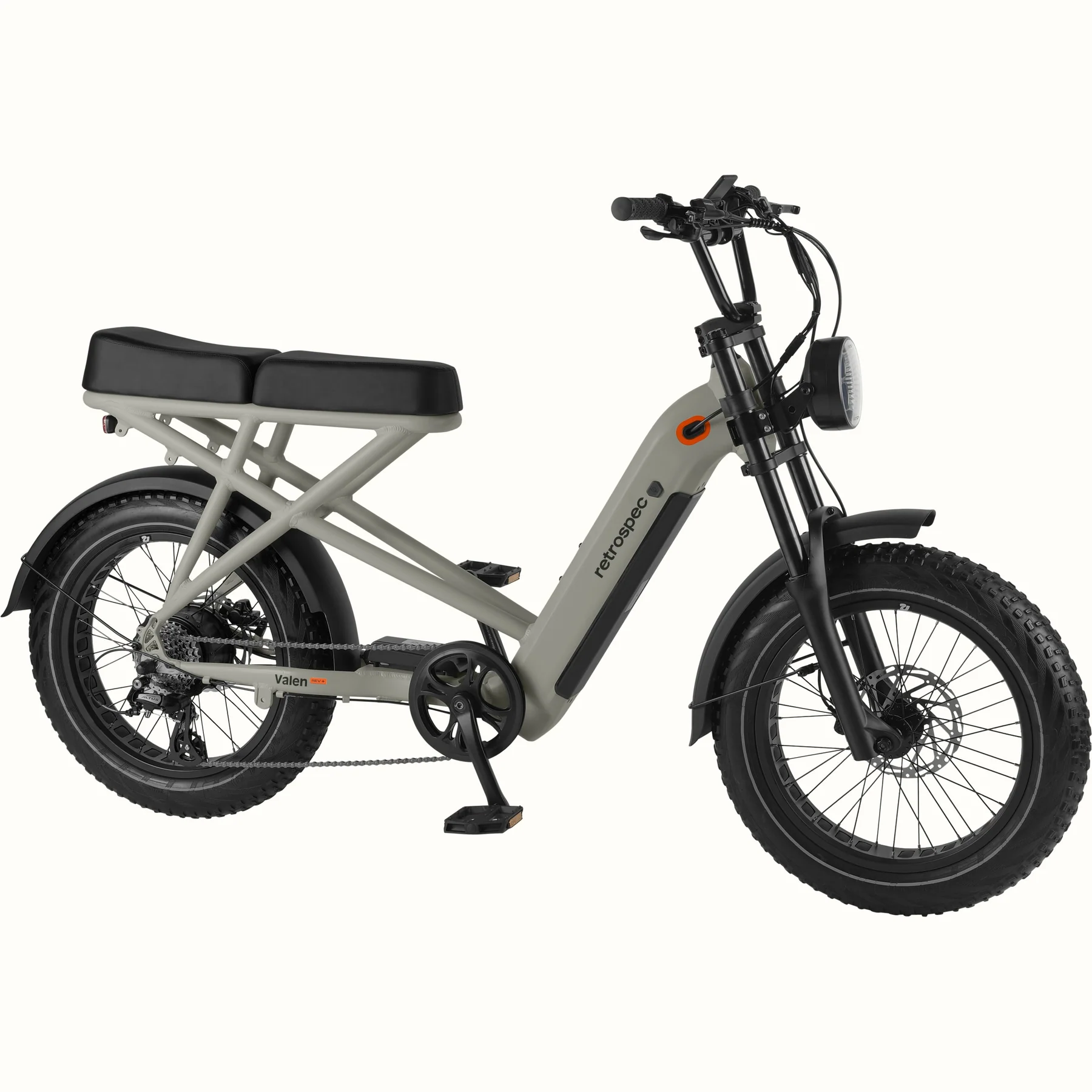

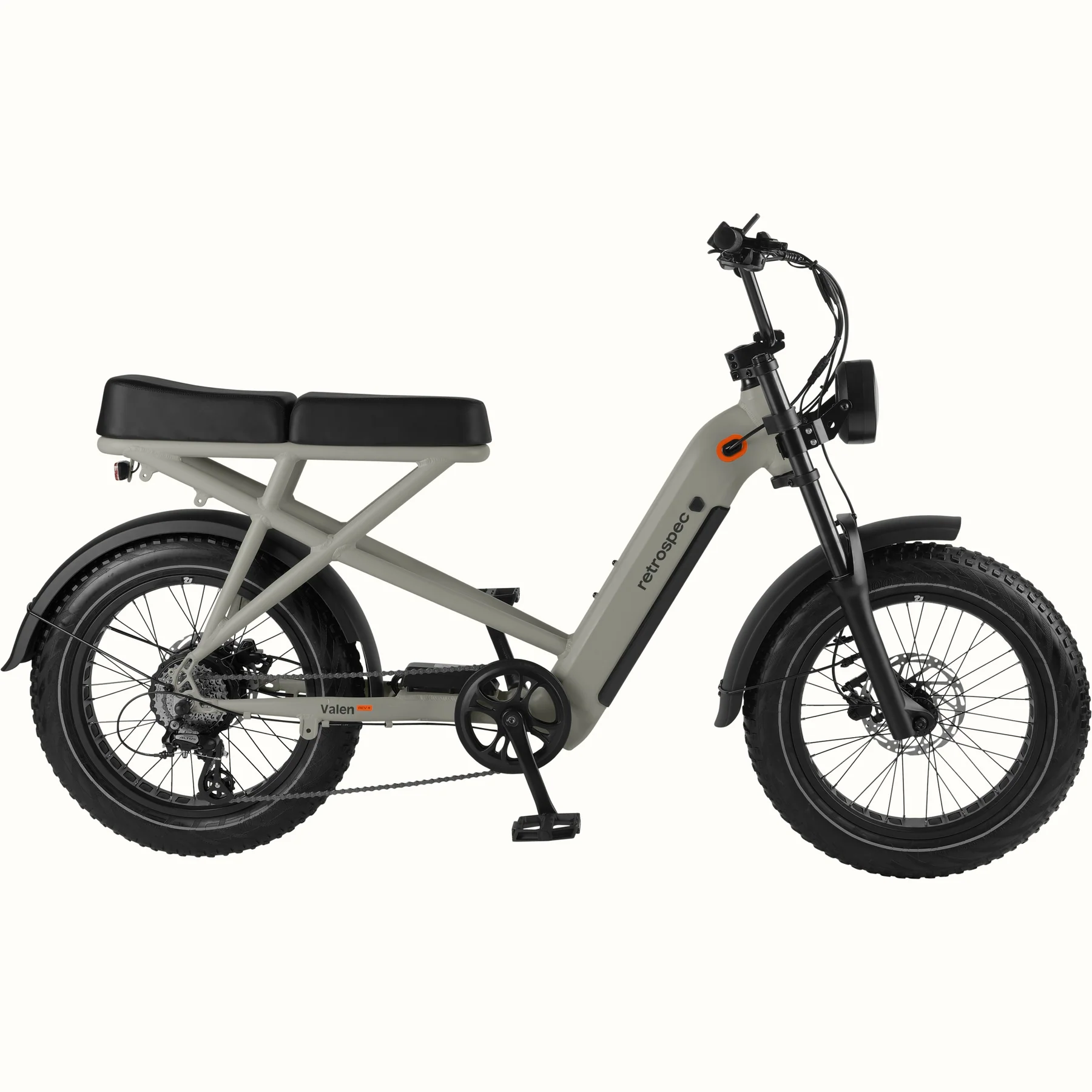

Hop On With Ease

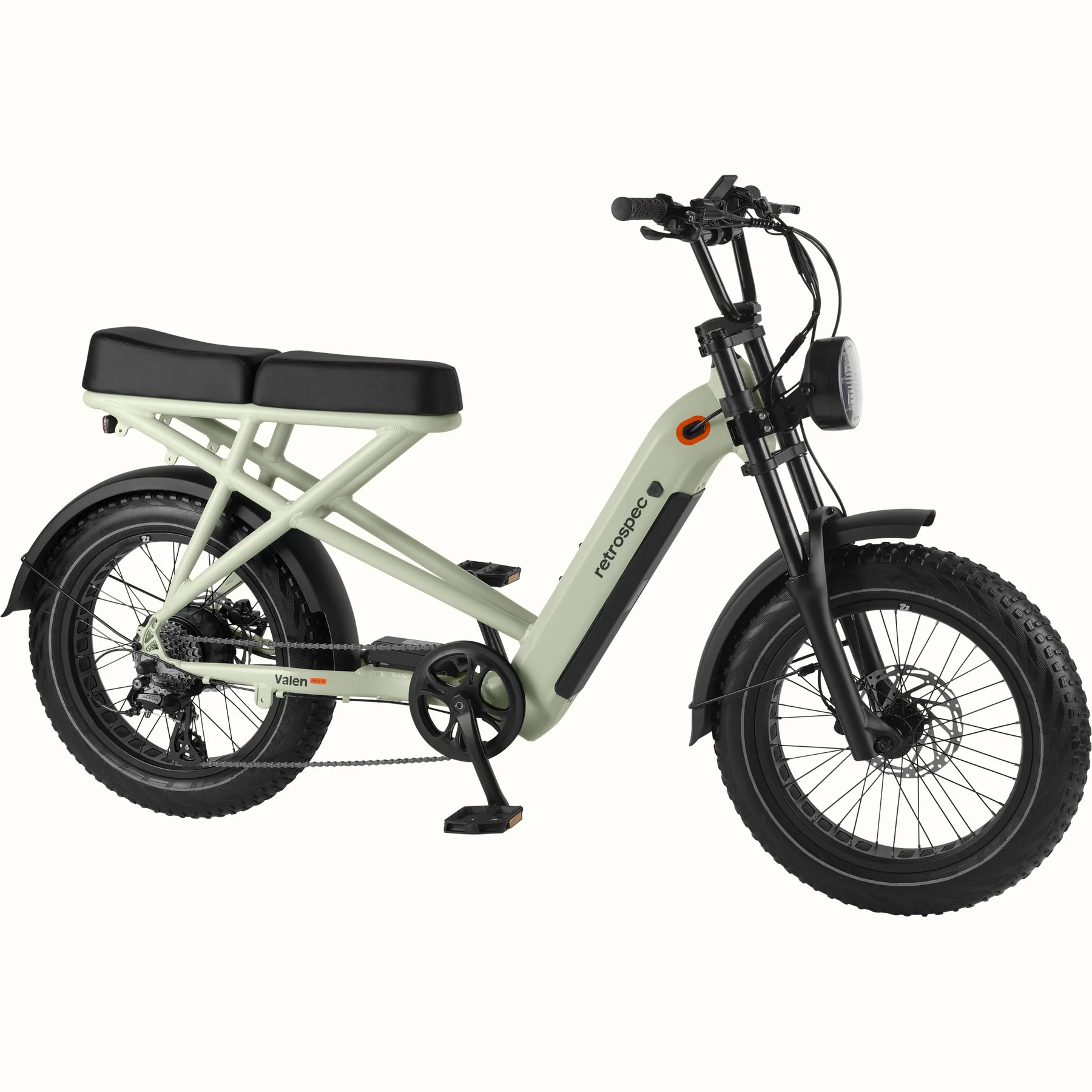

Getting on and off your bike has never been easier, thanks to an accessible step through frame shape that also allows for a comfortable, upright riding position.

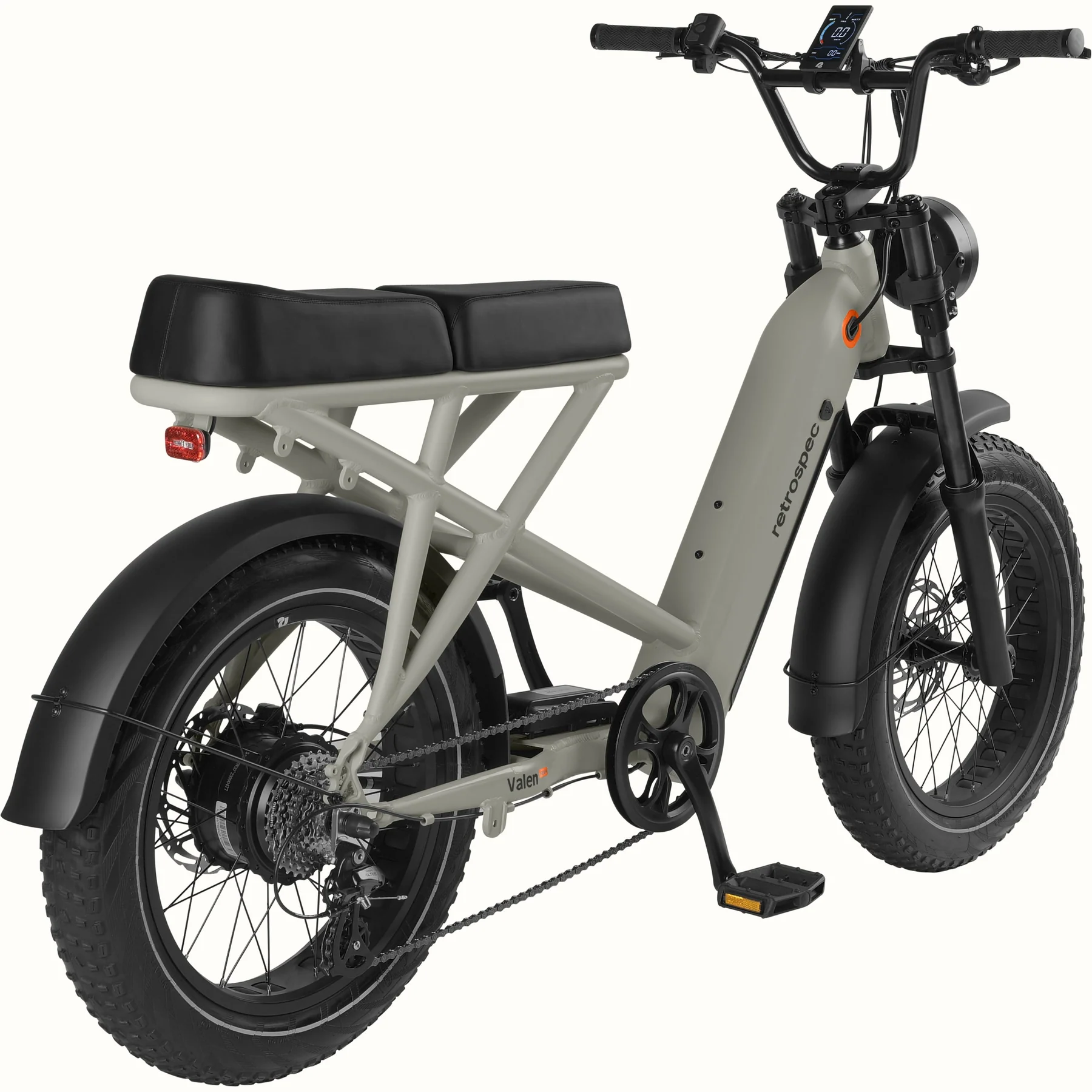

Customizable Rear Seat Setup
The custom modular saddle is comfortable, spacious, and able to accommodate riders up to 350 lbs. For even more options, the back half can be removed to use the rear rack or add a cargo basket. Pictured: Thule Easy Fit Yepp. Accessories not included.

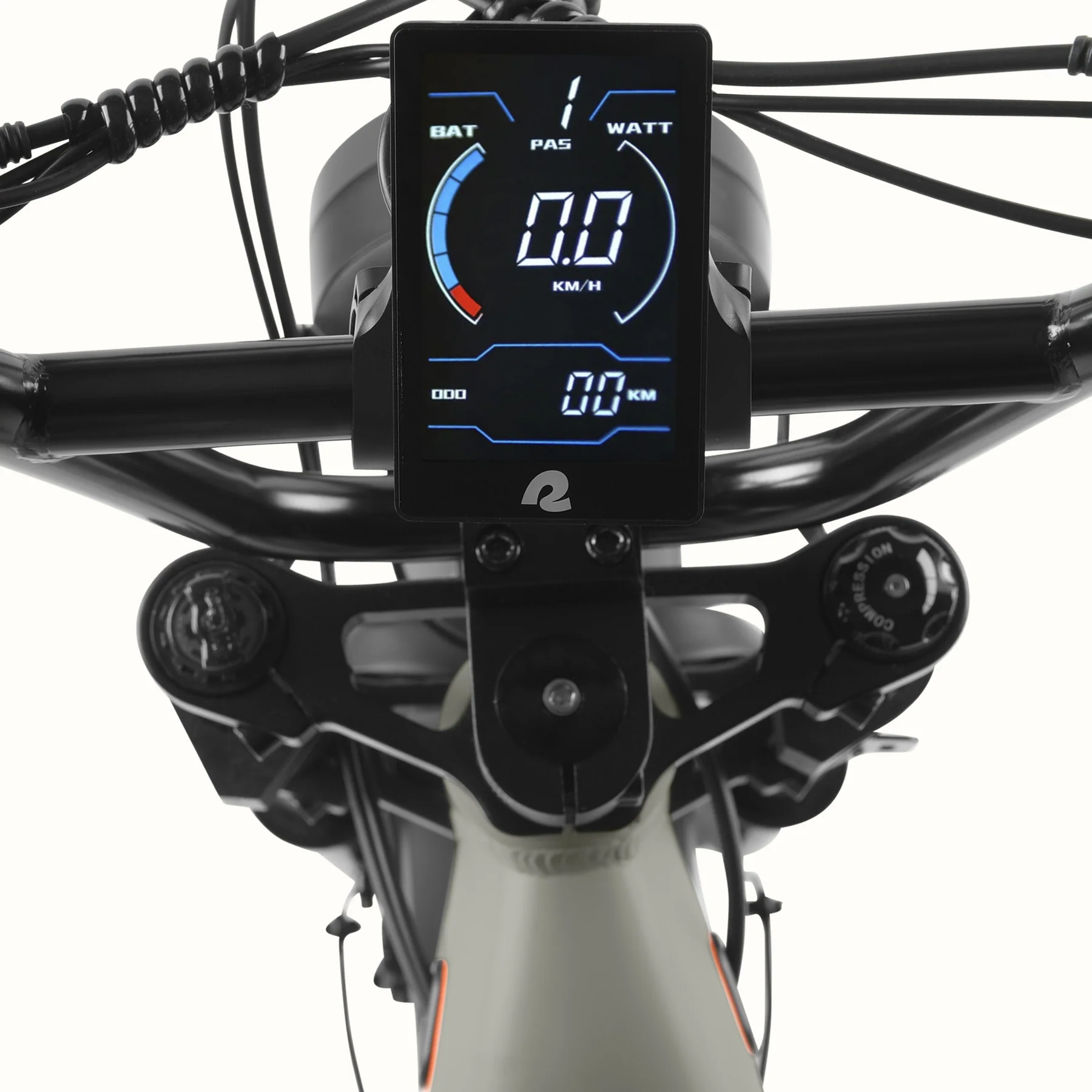

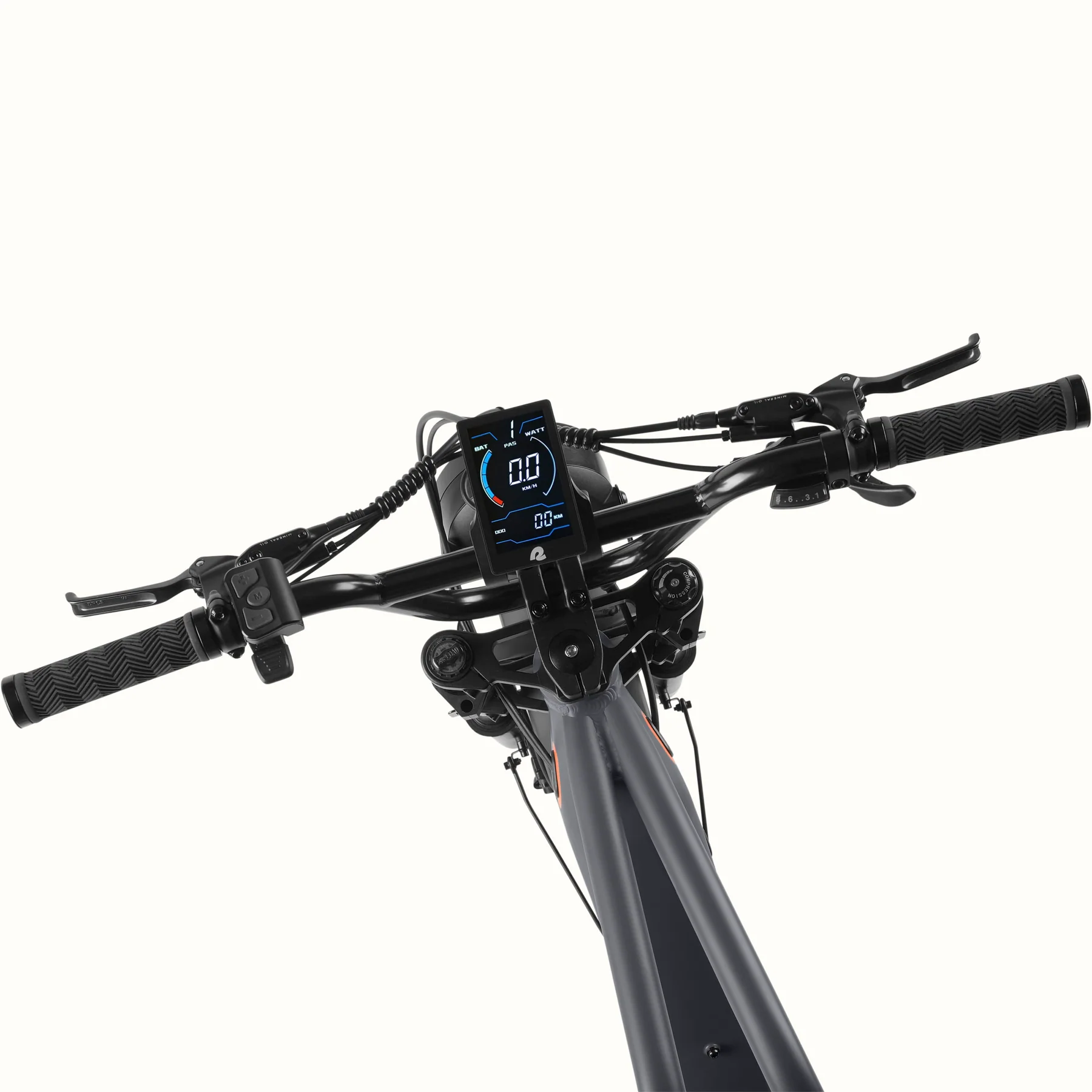

Easy Access to Controls

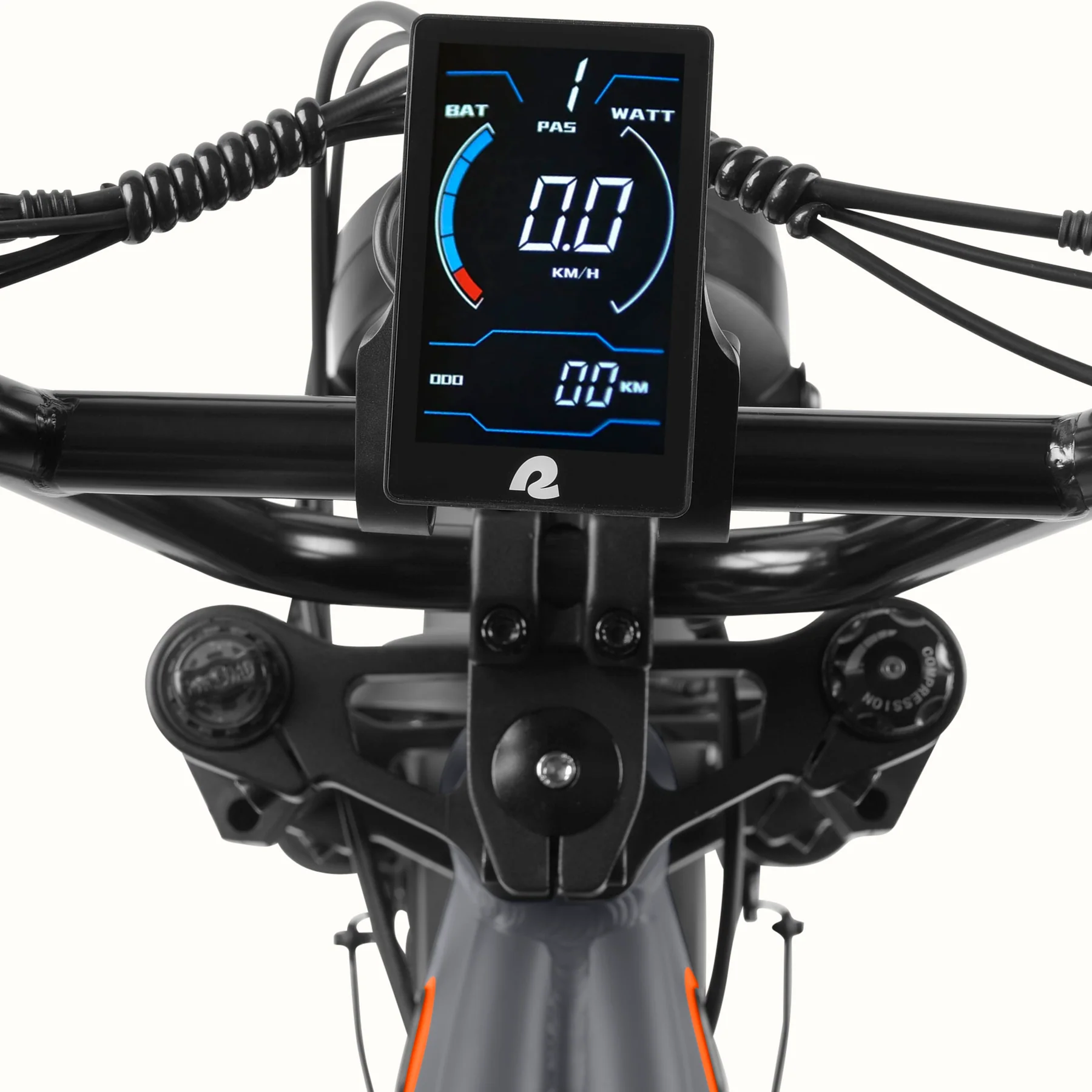

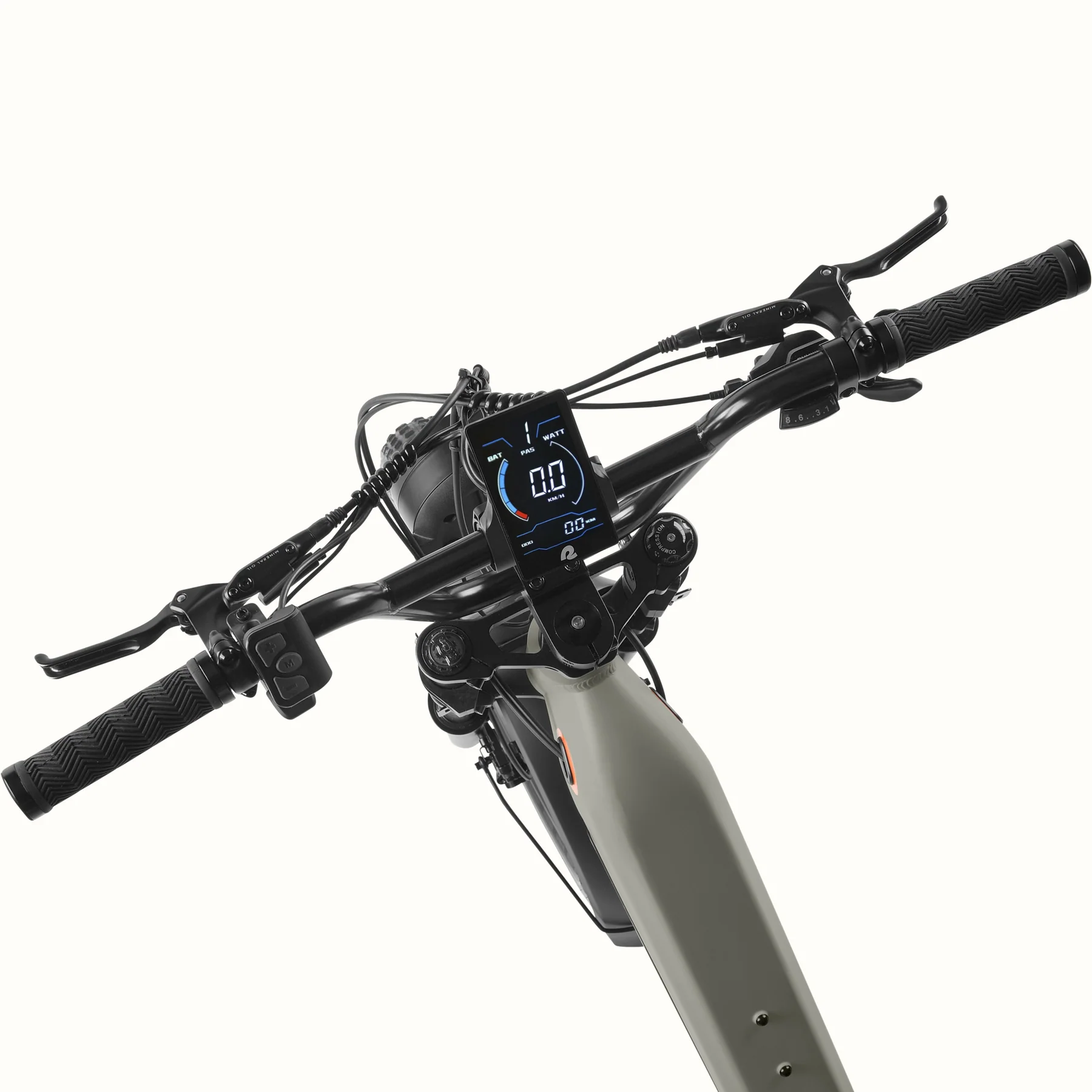

The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, & more. Keep track of it all with your eyes on the road using the easy-to-read, center-mounted color display.
On- or Off-Bike Charging
This ebike’s fully integrated battery is uniquely able to be charged both on and off the bike. It also uses LG 21700 cells to store more energy and offer up to 68 miles of range when fully charged.
Off-Road Ready
Fat 20×4.0 tires are made with heavy duty construction, full-coverage puncture protection, and a reflective safety strip, offering stable, comfortable, and smooth rides on any terrain.
Quiet, Consistent, Confident Braking
Tektro hydraulic disc brakes with ebike specific rotors offer reliable stopping power in any weather, so you can brake confidently.

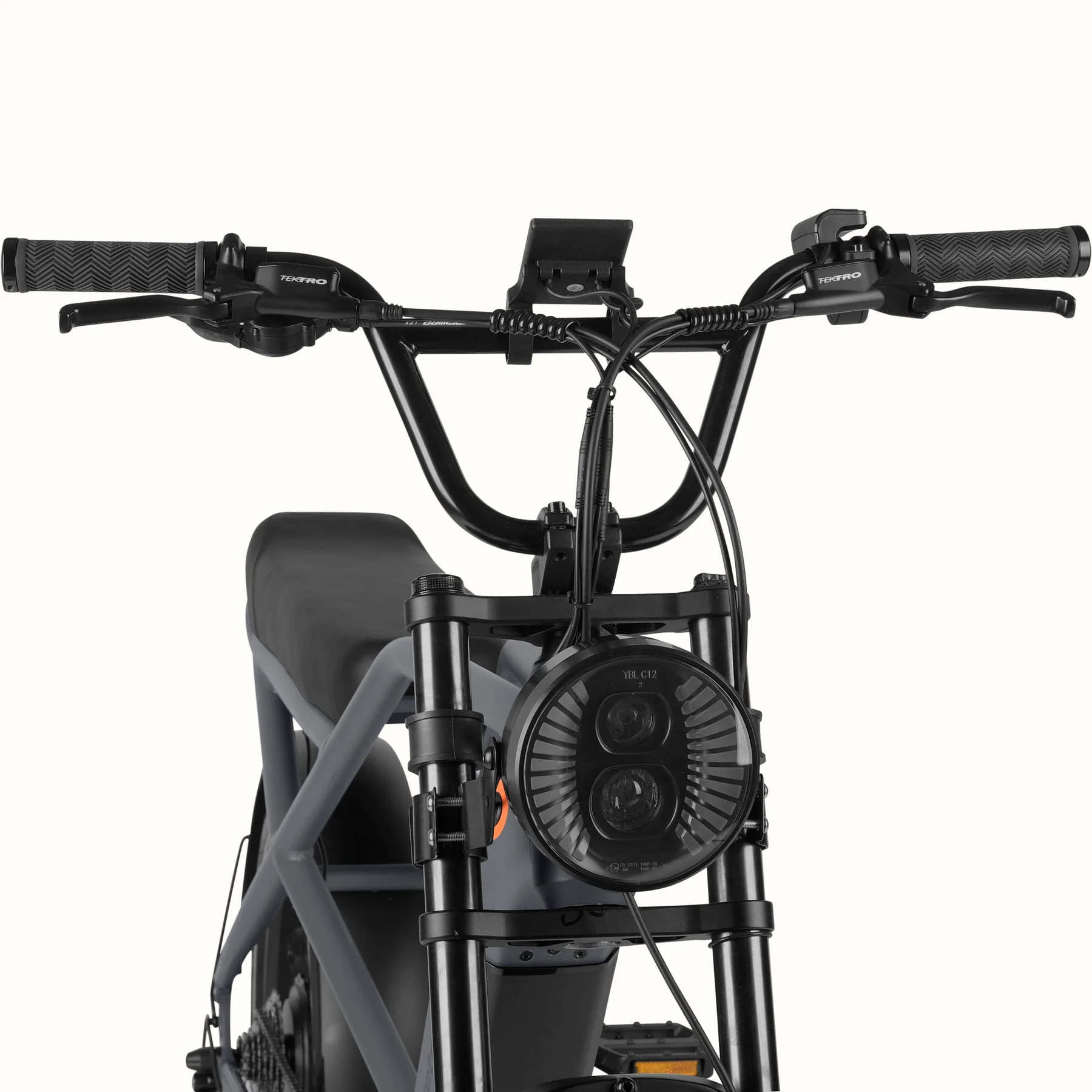

Stay Seen, Stay Safe

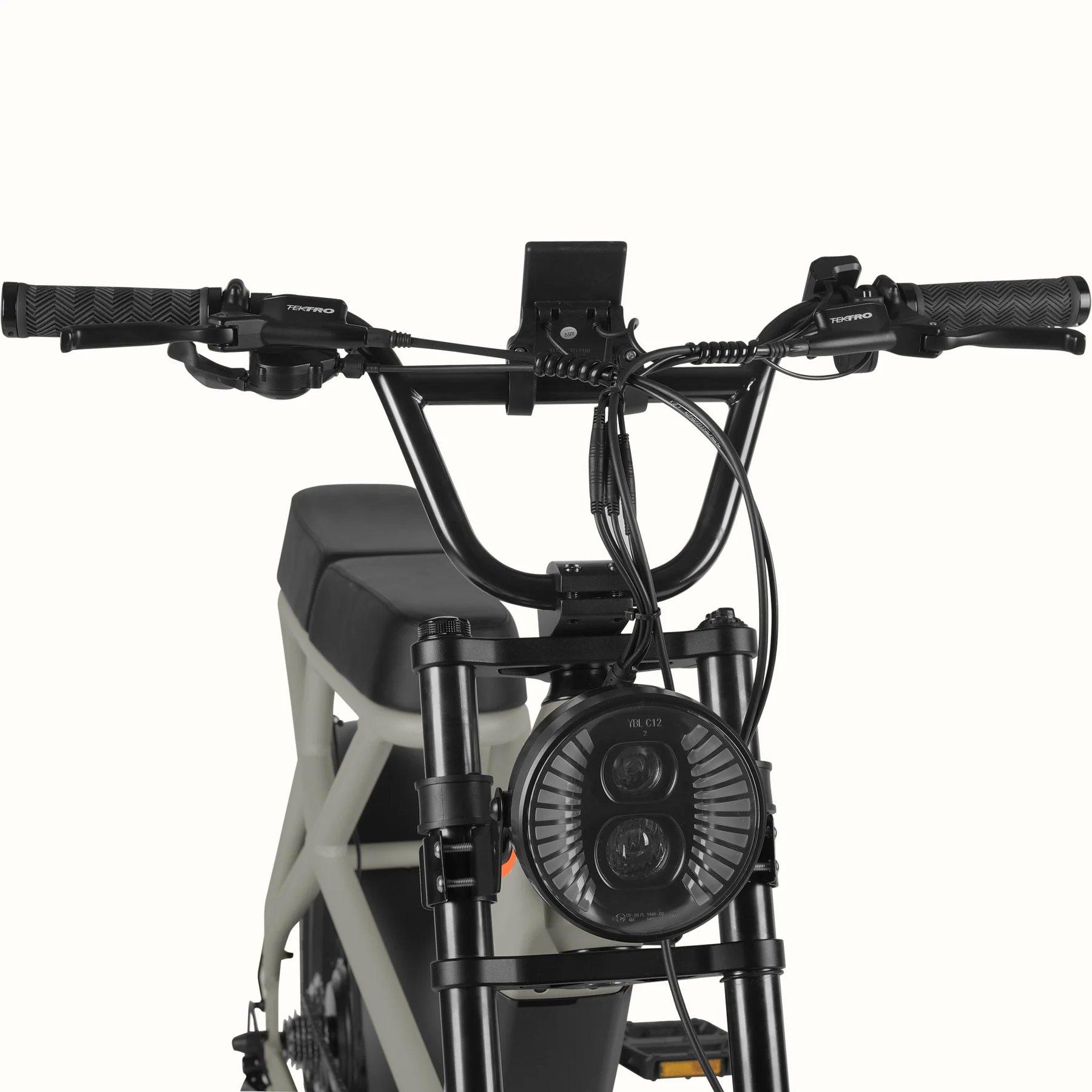

Integrated front and rear lights illuminate your path and help keep you safe while riding in low light. The headlight’s 100 Lux illumination and the tail light’s brake indicator further improve the bike’s visibility.
Easy-Change Rear Wheel Removal System
retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.
Tackle Inclines or Cruise Flats
With a robust, versatile Shimano 8-speed drivetrain
UL2271 & UL2849 Safety Certified
This ebike has been tested and certified to UL2





Please note:

All sales final. We do not accept returns for this unit. We would cover components that are defective from factory under manufacturer warranty.

Color

MATTE BLACK, Matt Shale, Matte Arbor, MATTE OLIVE DRABE
