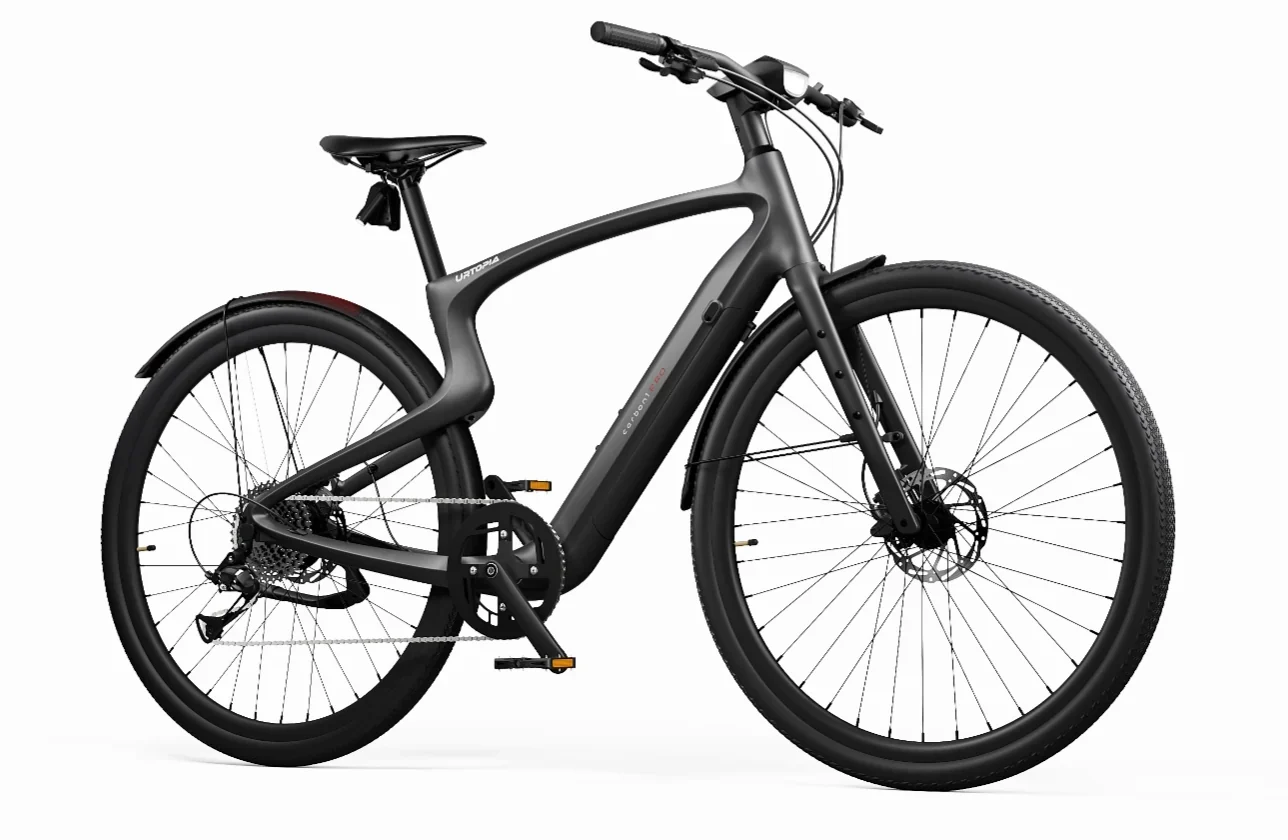

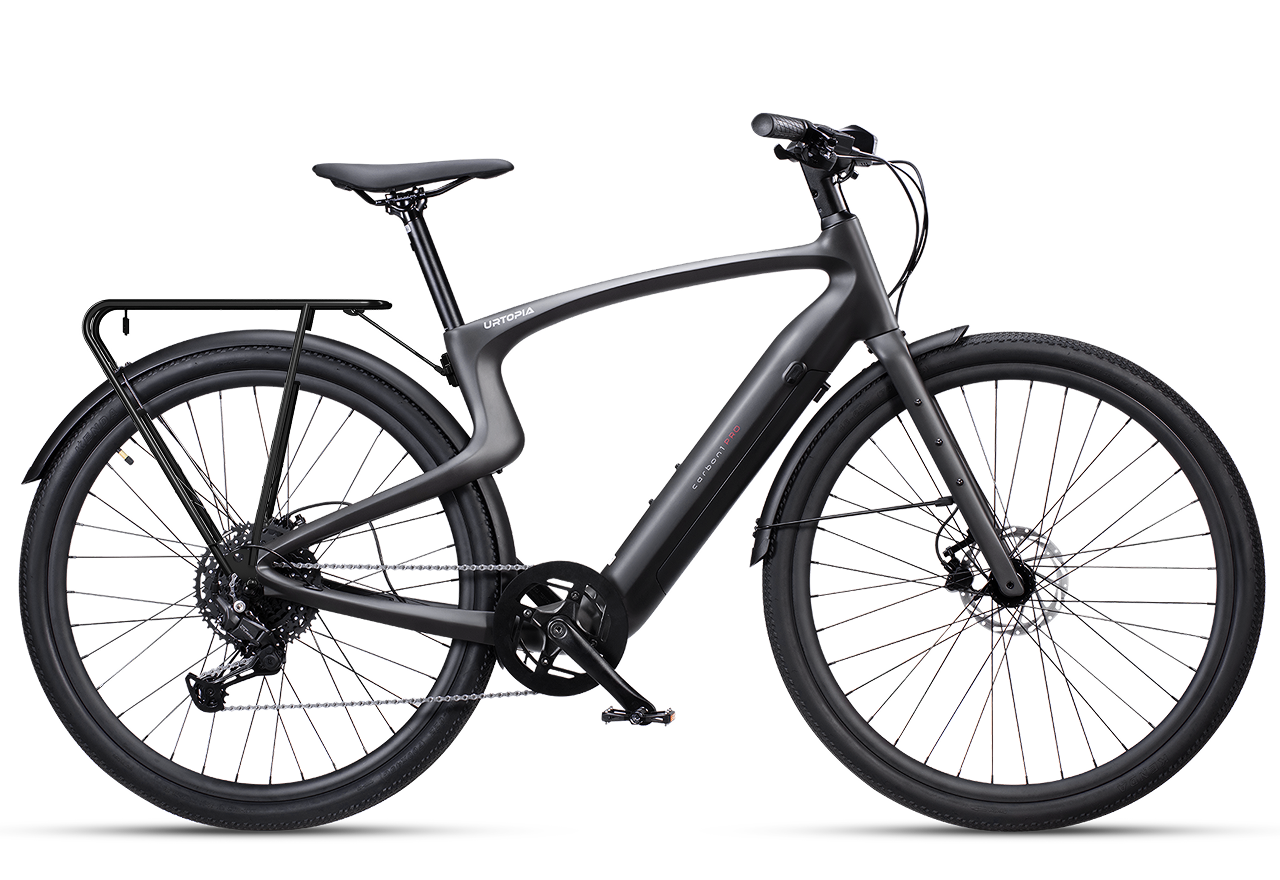

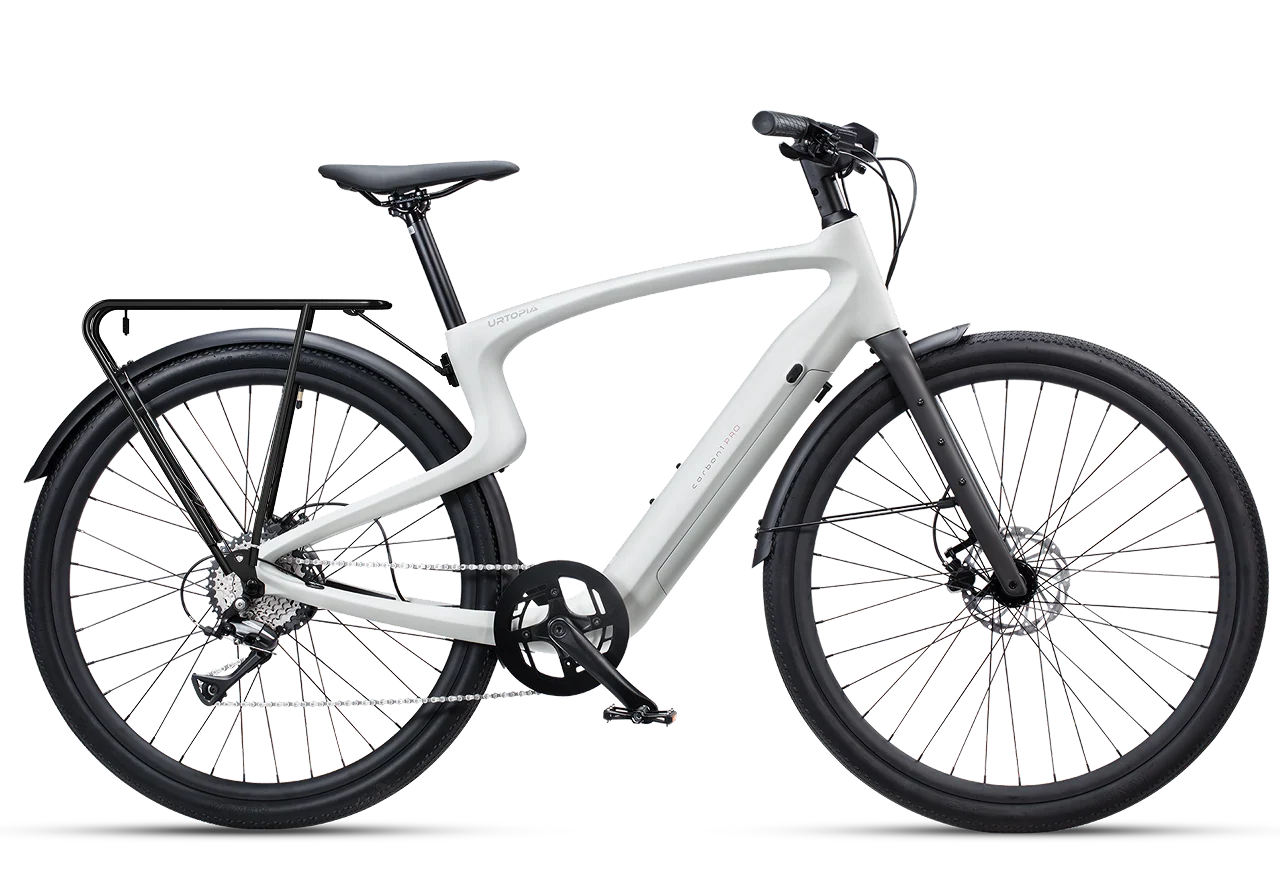

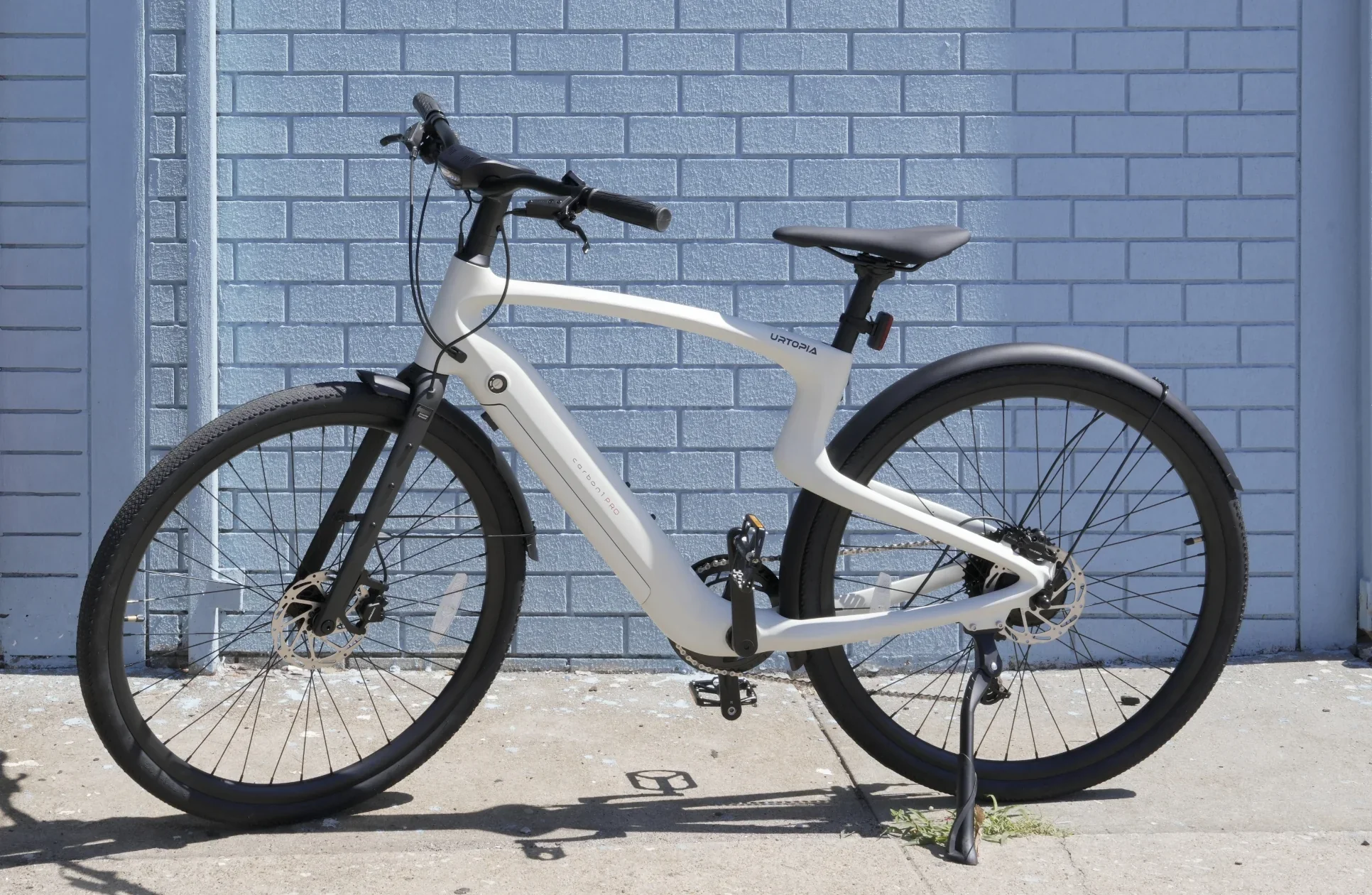

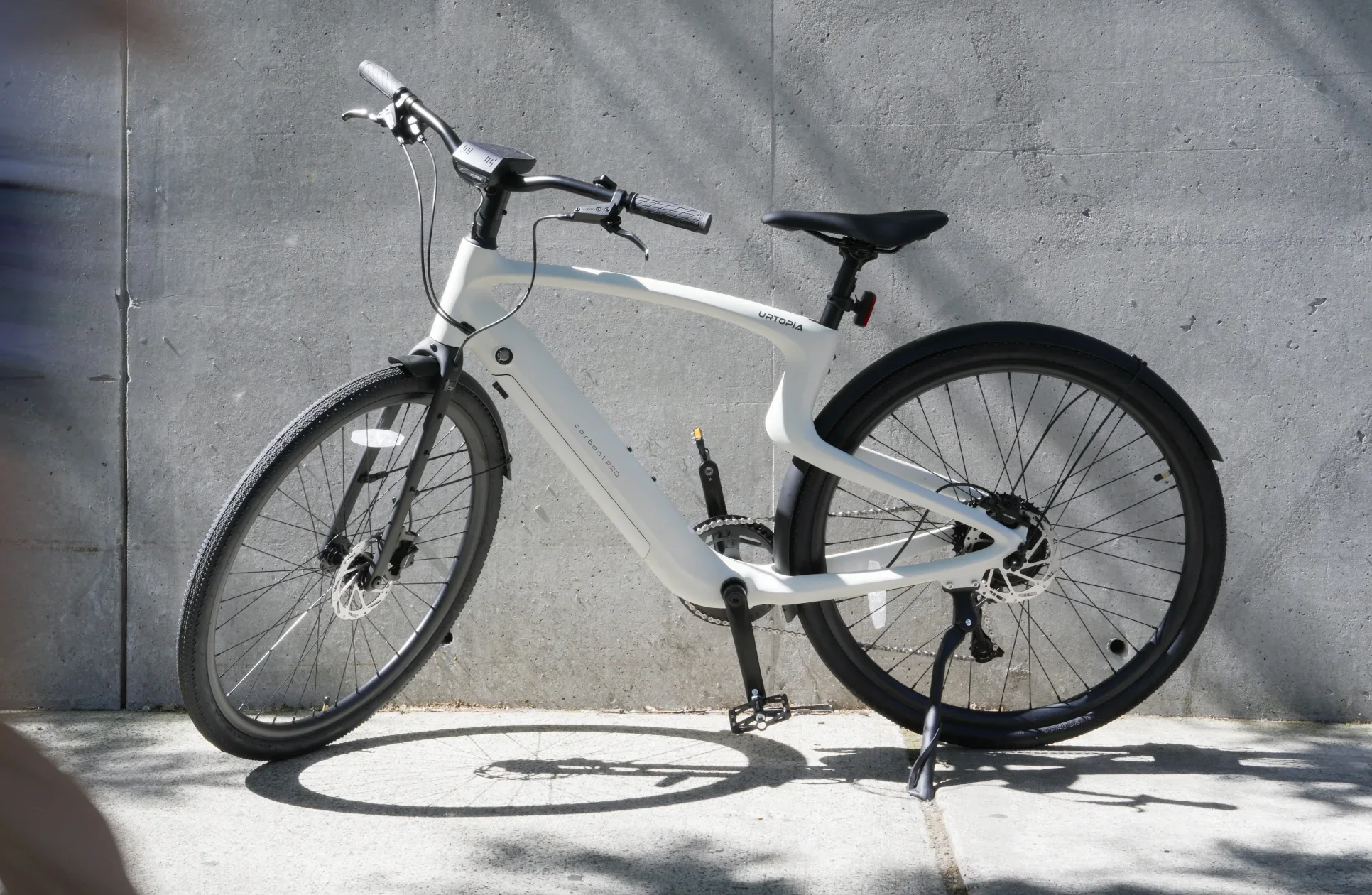

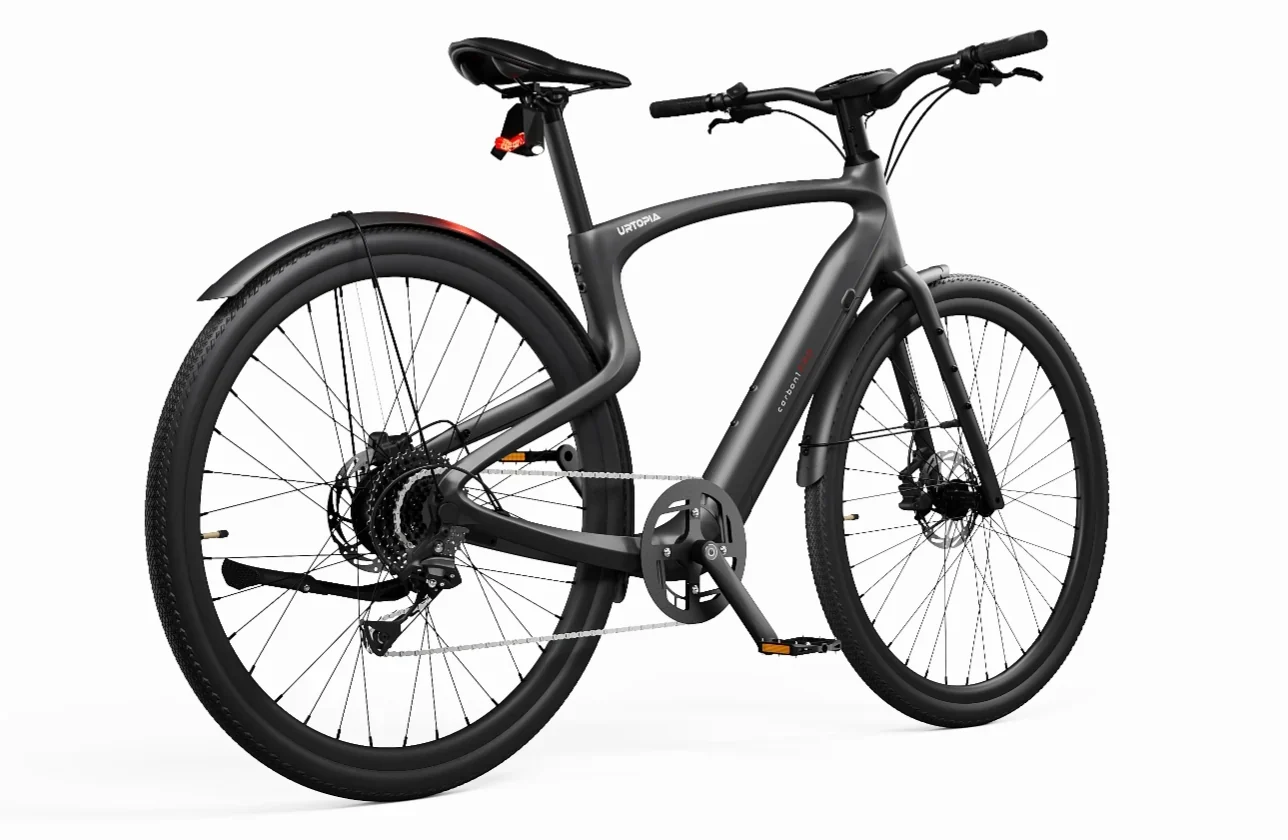

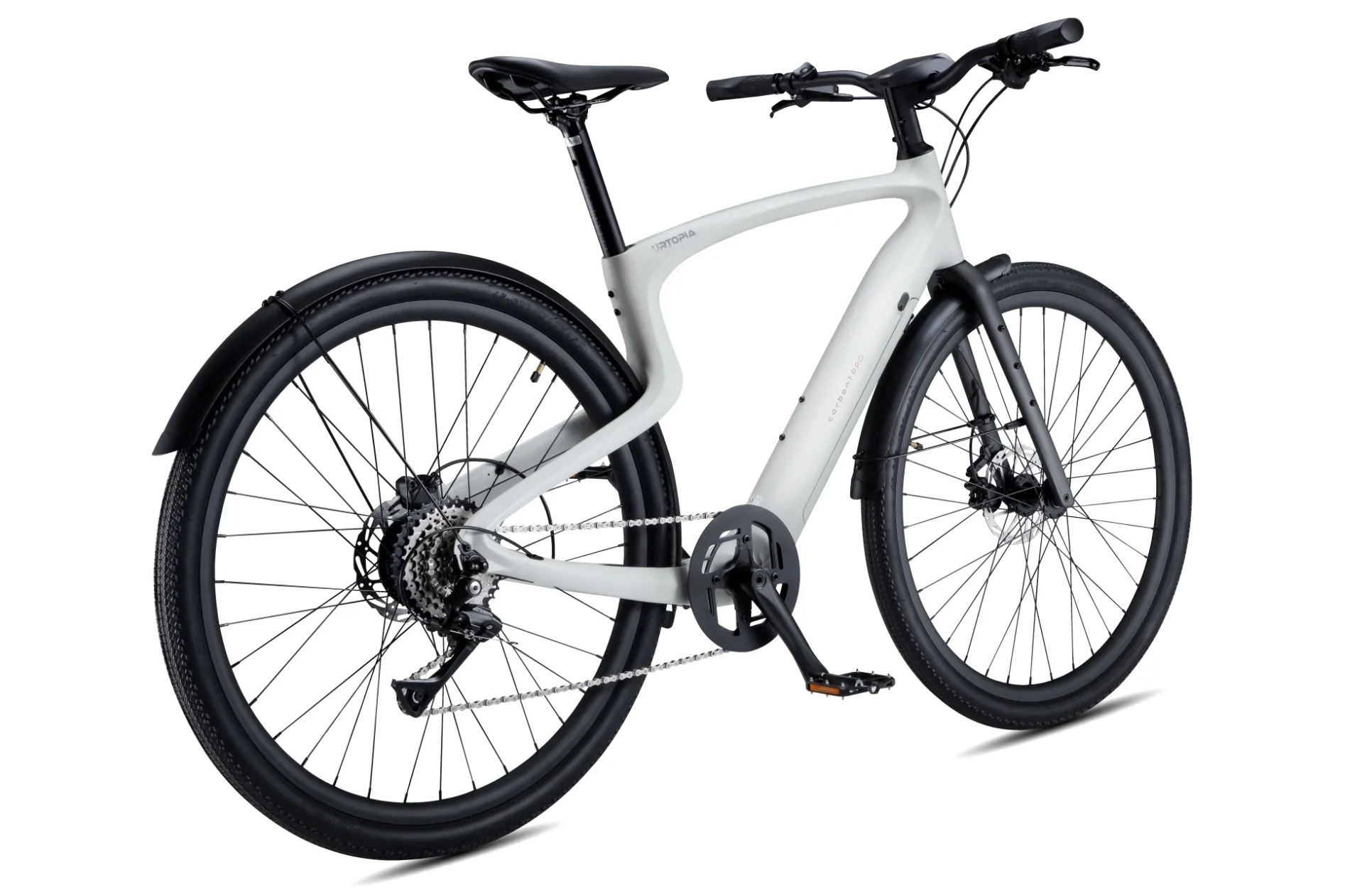

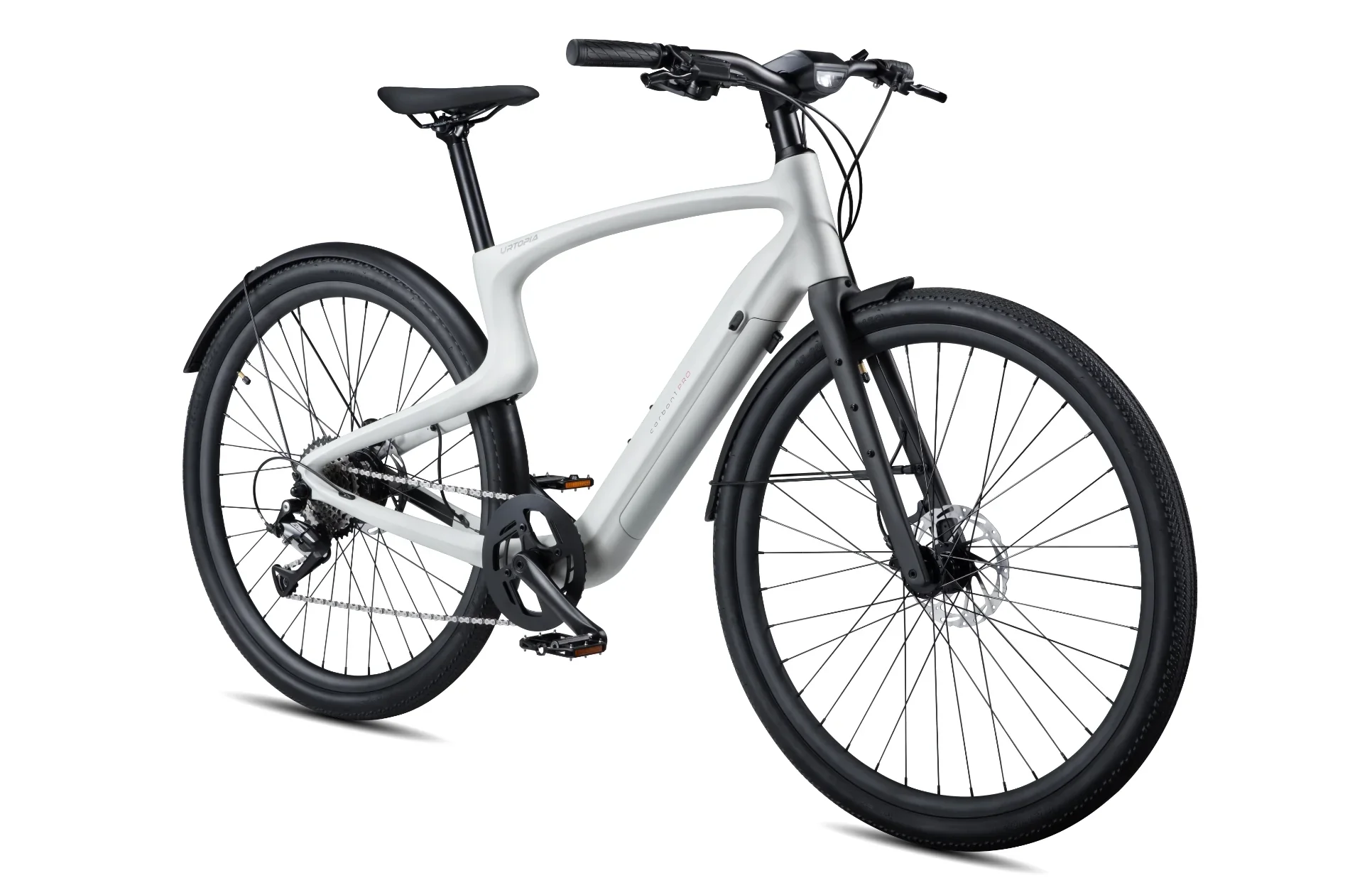

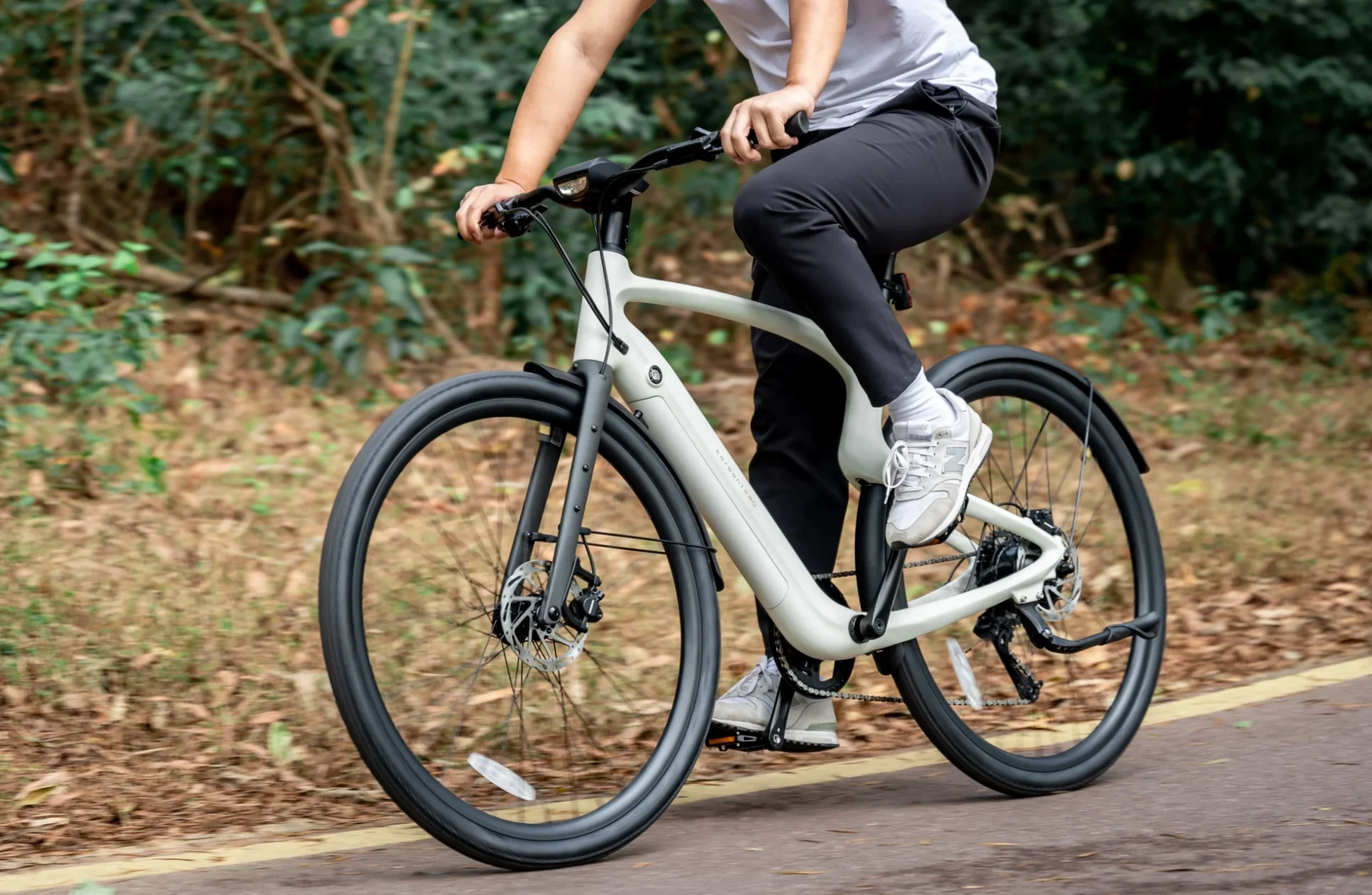

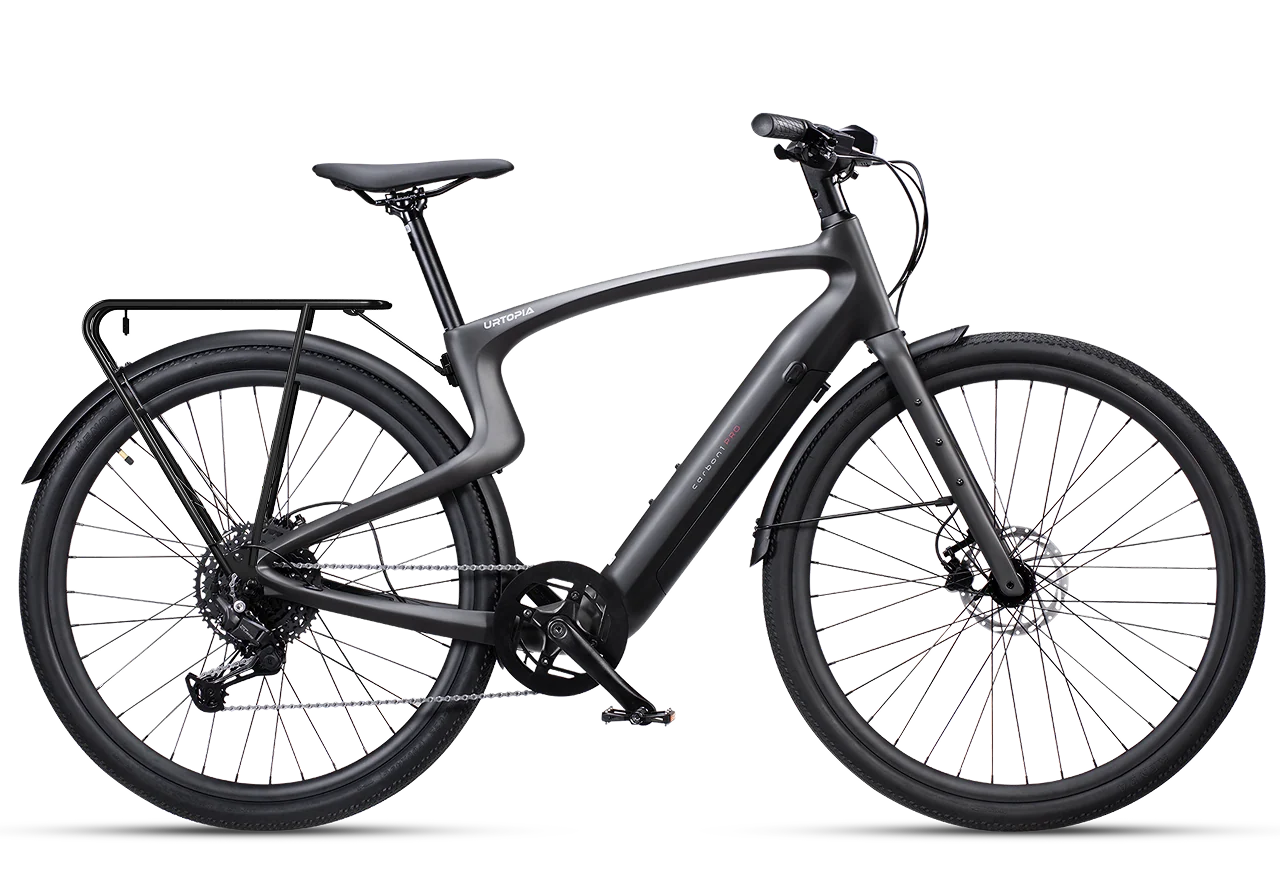

Lightweight Carbon 1 Pro ebike with Toray® carbon fiber, 81 mile range, removable battery, Shimano 8-speed, and torque sensor for city and off-road rides.
Technical Specs
General Info
Model: Carbon 1 Pro E-bike
Ideal use: Commuter
Bike Weight: 41 lbs (18.6kg)
Net Weight: 38lbs (17.4kg) w/ battery / 33lbs (15.2kg) w/o battery
*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
Material: Carbon fiber frame & fork
Folding: No
Frame style: Step-Over
Pedal Assist Range: Up to 81 miles
*The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
Top Speed: 20mph by default / 25mph upon unlock
Total Payload Limit: 240 lbs
Rider Height:
Small: 5’3″ – 5’9″
Medium: 5’7″ – 6’1″
Large: 5’11” – 6’5″
Brakes: TEKTRO 2-Piston Hydraulic Disc Brakes
Wheels: Kenda 700C x 40mm (45mm max.) tires
Bike Water Resistance: IP65
Ebike System: Motor Power Rated Power 350W (Peak Power 500W) rear hub
Motor Max. Torque: 45Nm

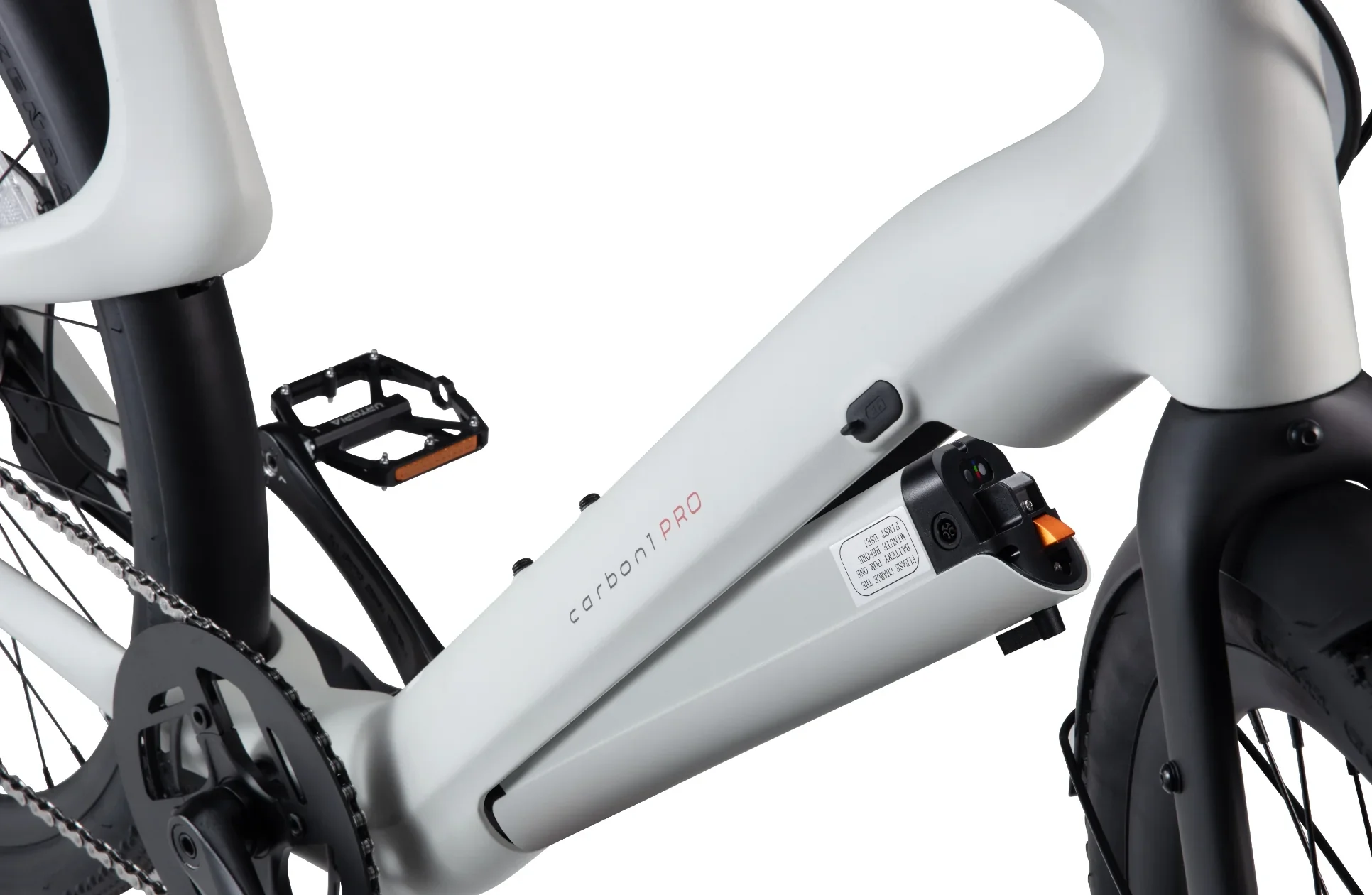

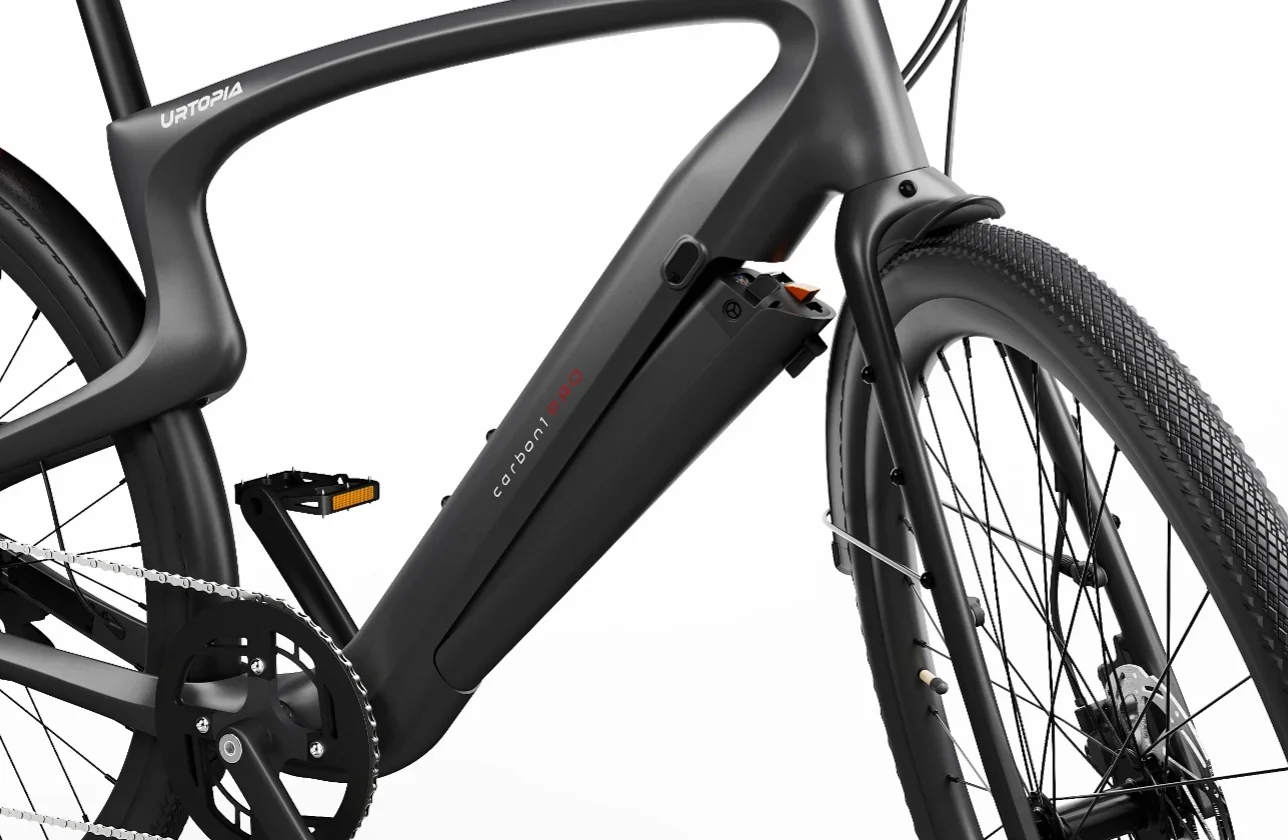

Battery: 36V 9.8Ah (352.8Wh) Samsung Li-ion, Removable, UL 2271 Certified
External Battery: No
Pedal Assist: 4 levels
Charger: 36V 4A Fast Charger, 2.5-Hour Charging Time

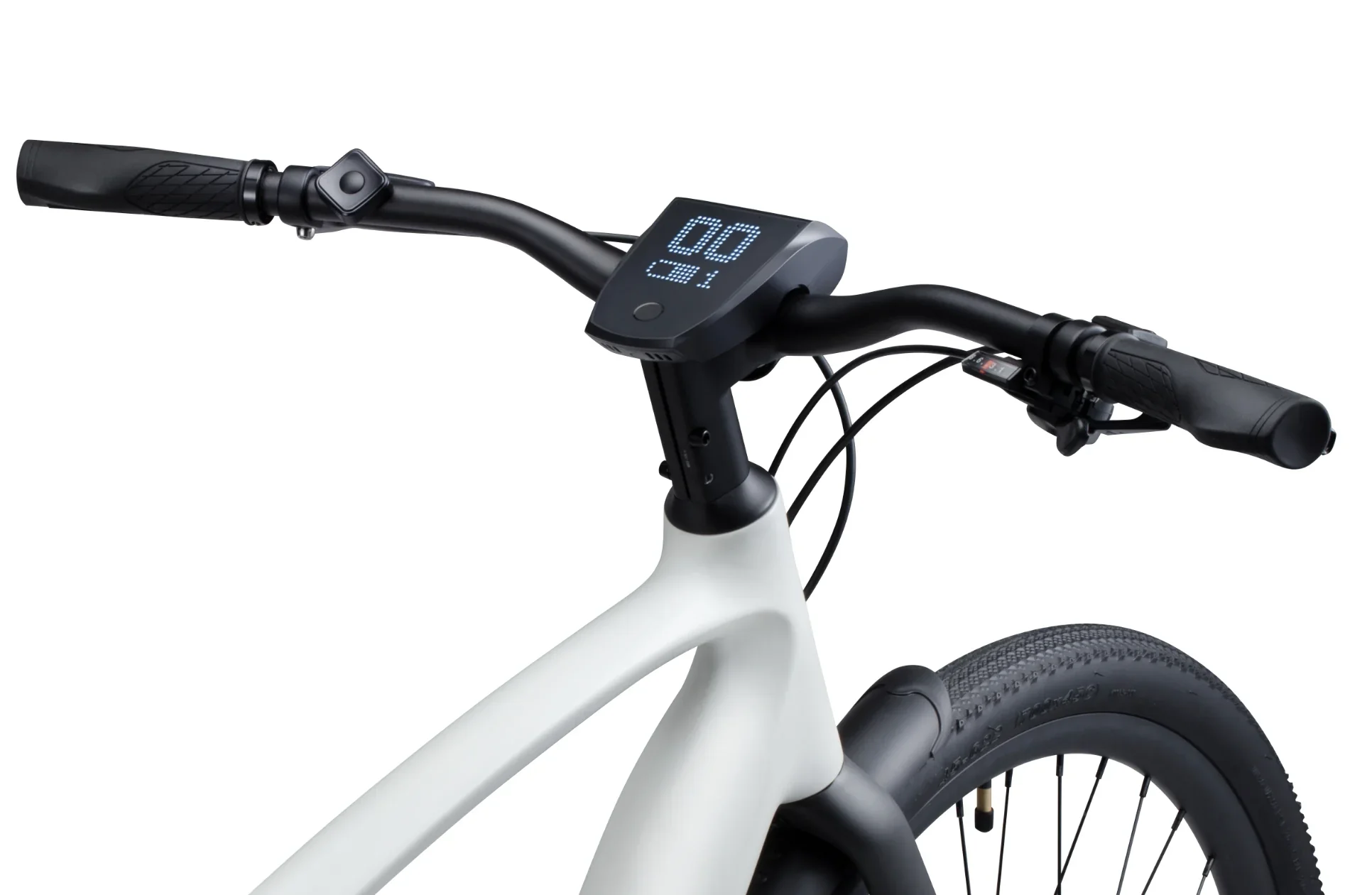

Display: LED dot-matrix (Anti-glare)
USB Charge: No
Sensors: Torque sensor
Lights: Front: Integrated StVZO headlight, 90 lm
Rear: Tail light with dry battery (ARES light optional)
Throttle: No
Class: Class 1
Drivetrain: Chainrings 44T
Crankset: Aluminum alloy, 170mm
Cassette: 11T-40T, 8 speed
Chain: Shimano 8-Speed
Rear Derailleur: Shimano ACERA 8-Speed
Shift Lever: 8 Speed Trigger
Pedals: 9/16″ Alloy Platform
Cockpit: Grips
Durable ergonomic Grips, lockable: Seat Post Aluminum Alloy,31.6mm Clamp, 100mm (size M&L), 80mm (size S)
Fork: Carbon fiber fork
Saddle: COINLLI Saddle, 268x173x71mm
Handlebar: Aluminum, 28.6mm Clamp, 720mm Wide
Stem: Height Adjustable: 0/15/30mm

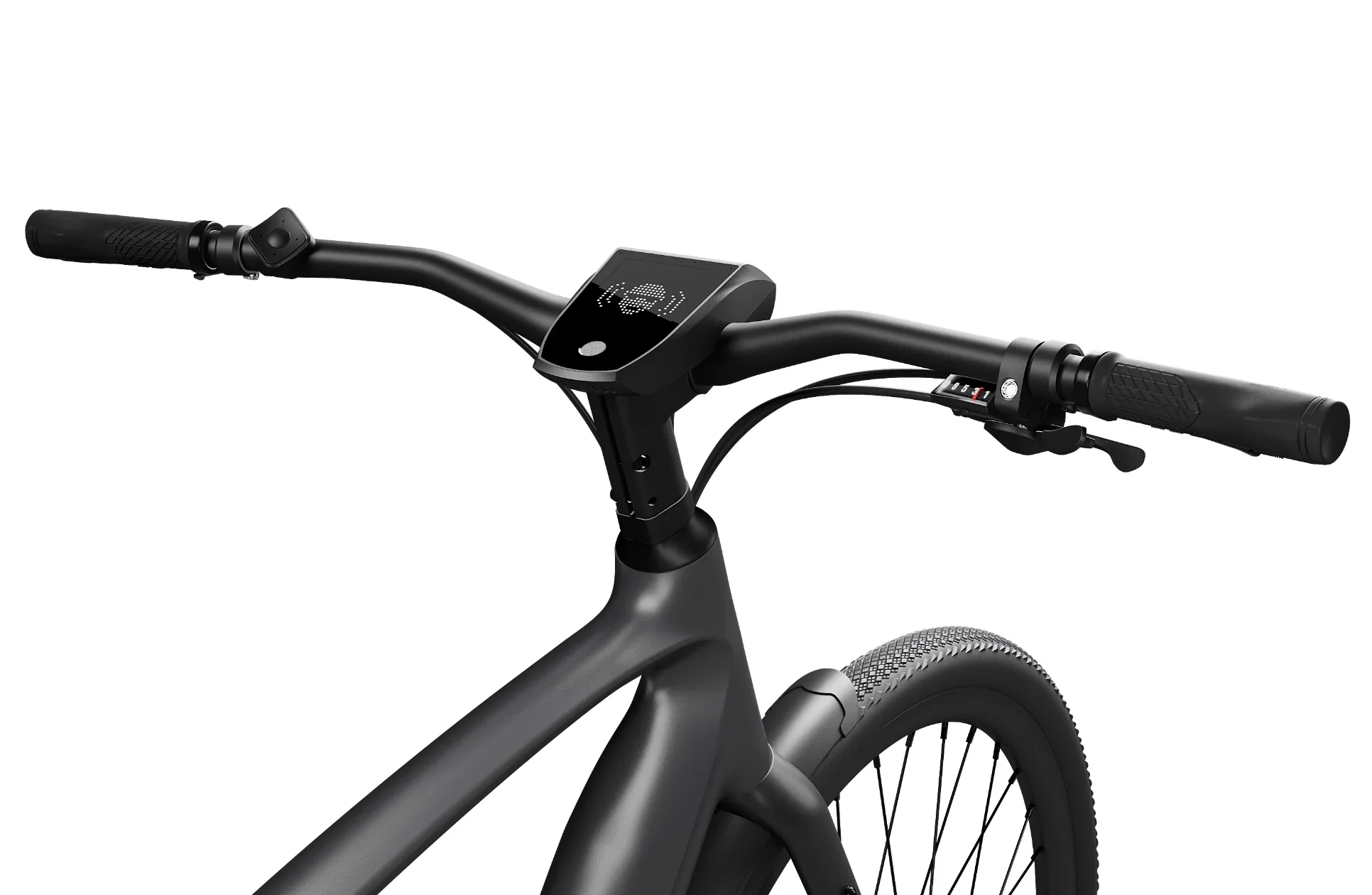

Smartbar: Smartbar features On-board navigation, fingerprint unlock, AI assistant, voice control, bluetooth speaker, OTA update (wireless firmware update),IP65
Connectivity: eSIM with 4G, GPS, Bluetooth
Theft Defenses: Movement alarm, Electronic Fence, Find My Bike (live GPS tracking), Beep
App:Urtopia (iOS & Android)
SIM/Connect Service
Renewal via App (Urtopia)
SmallFit for 5’3’’~5’9’’
MediumFit for 5’7’’~6’1’’
