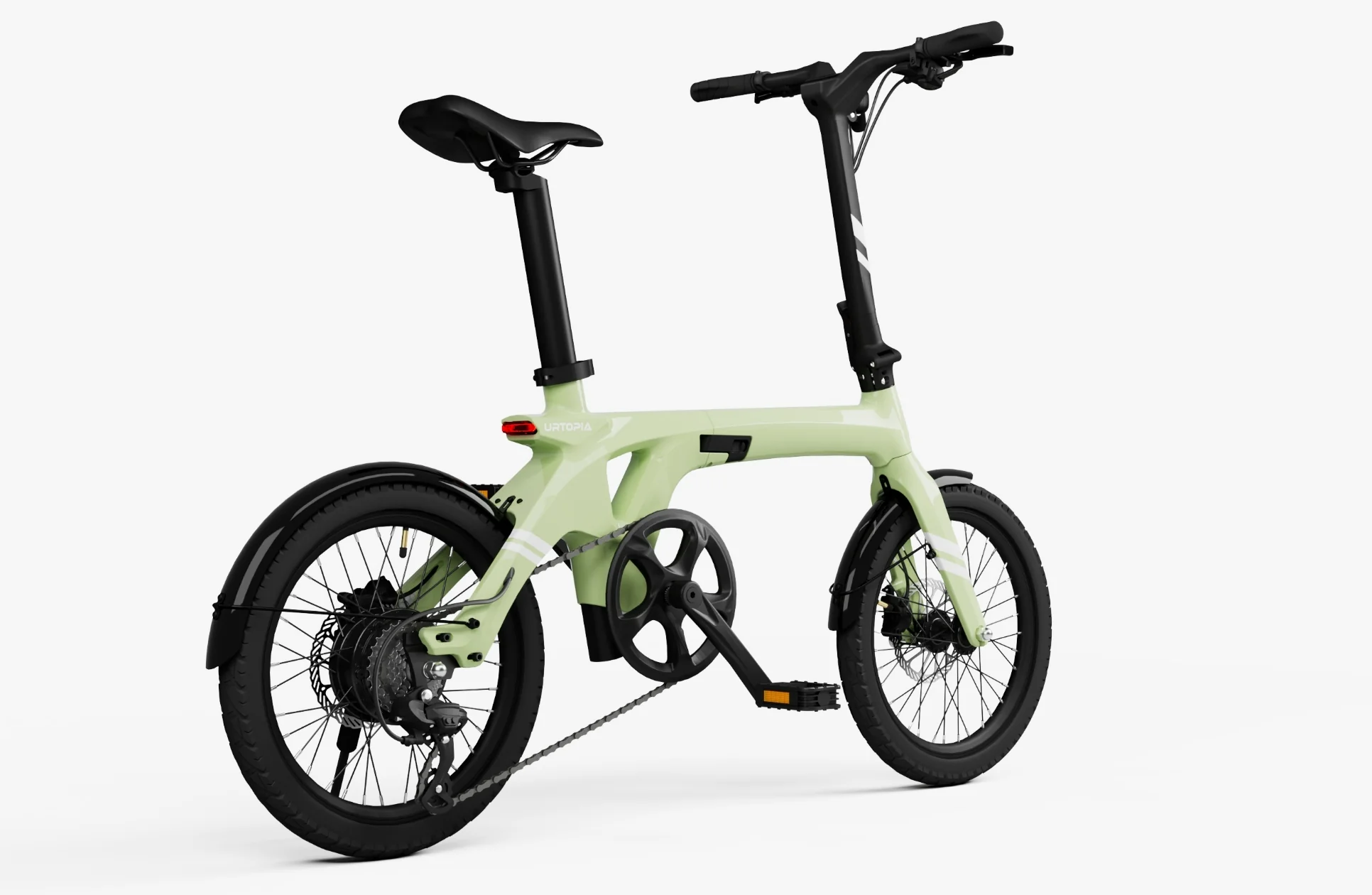

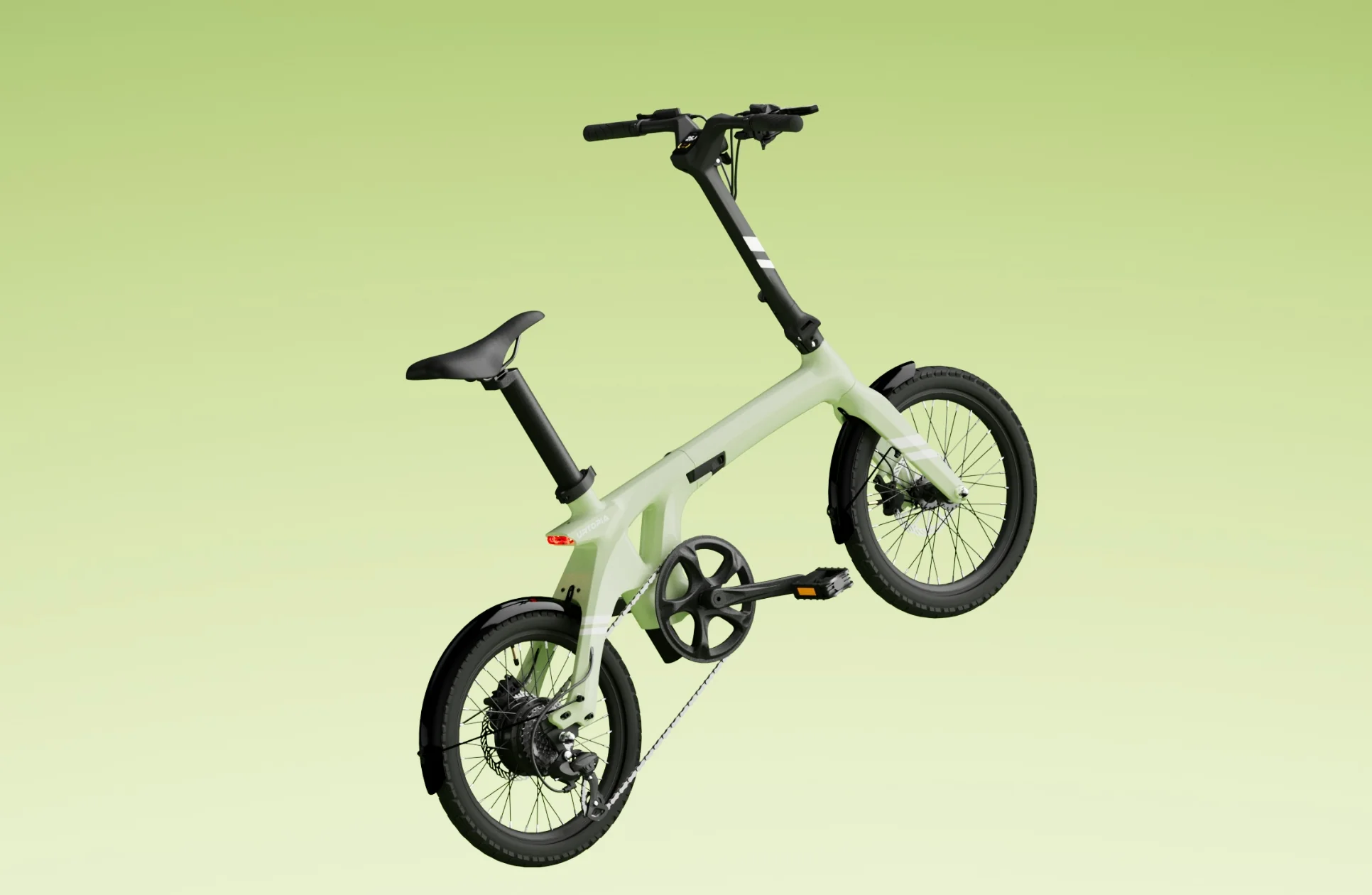

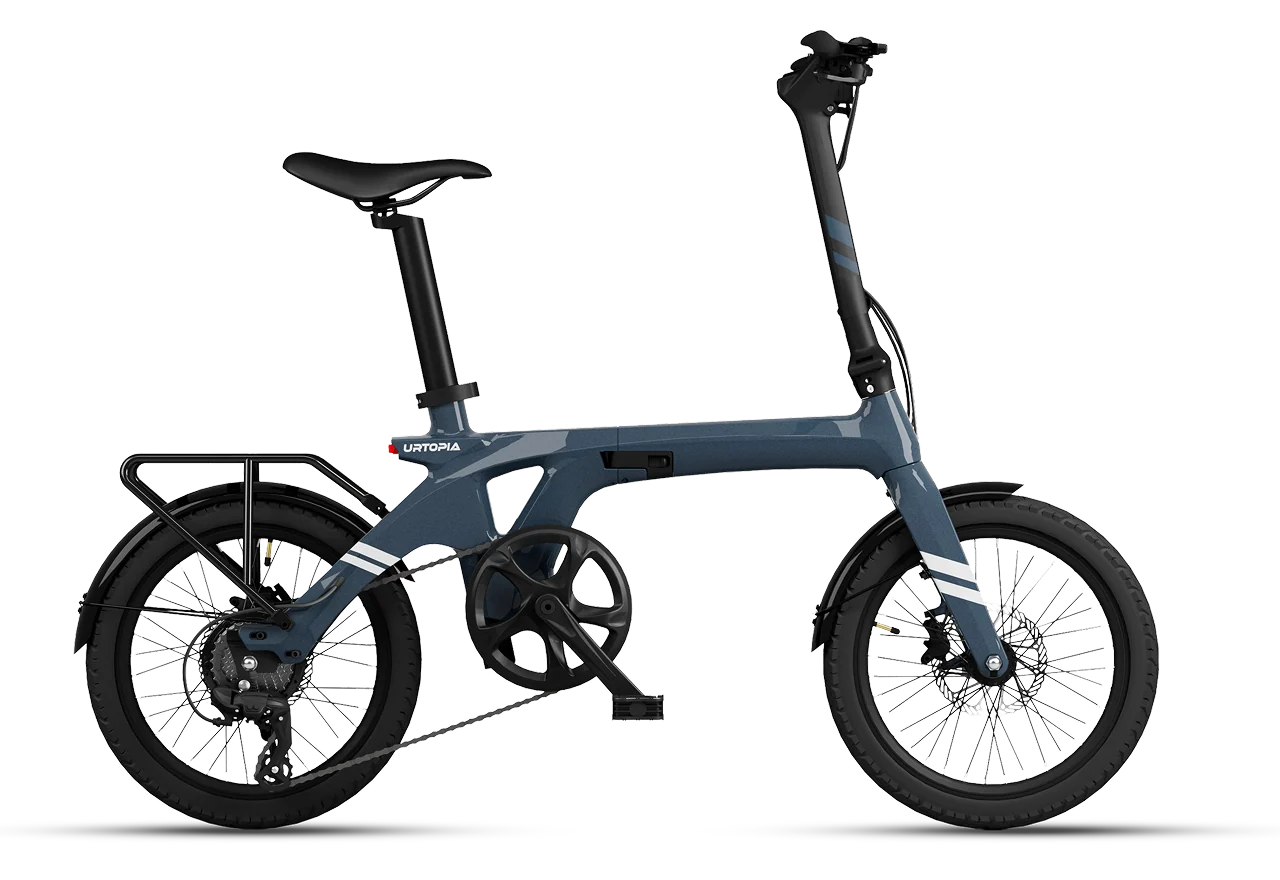

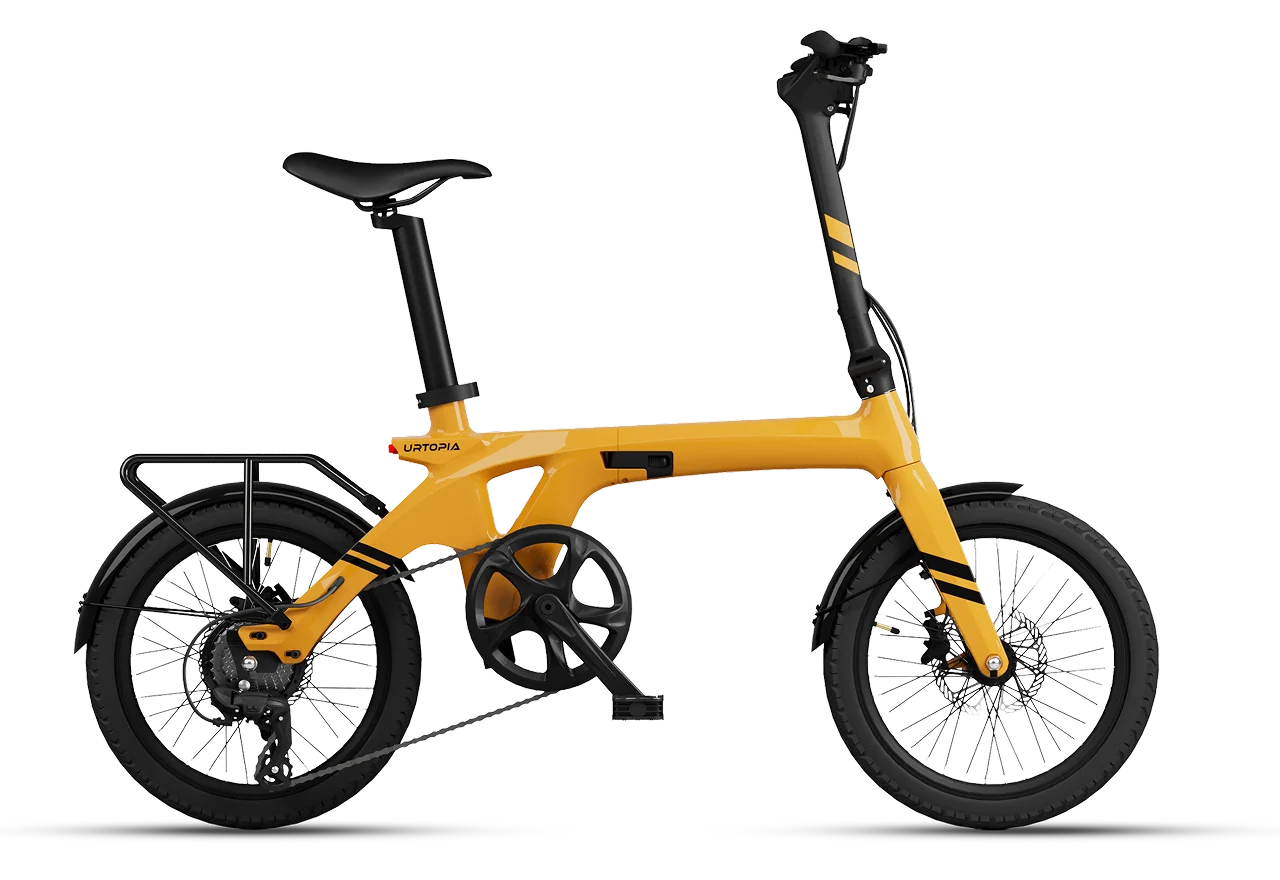

Ultra-light foldable electric bike weighs just 29 lbs, folds in 10 seconds, offers 40-mile range, torque sensor, hydraulic brakes, and integrated lights.
Full carbon fiber 29 lbs
2 Step Folding
Torque Sensor
Space-efficient
Colorful Screen Display
No Assembly Needed
General Info
Model

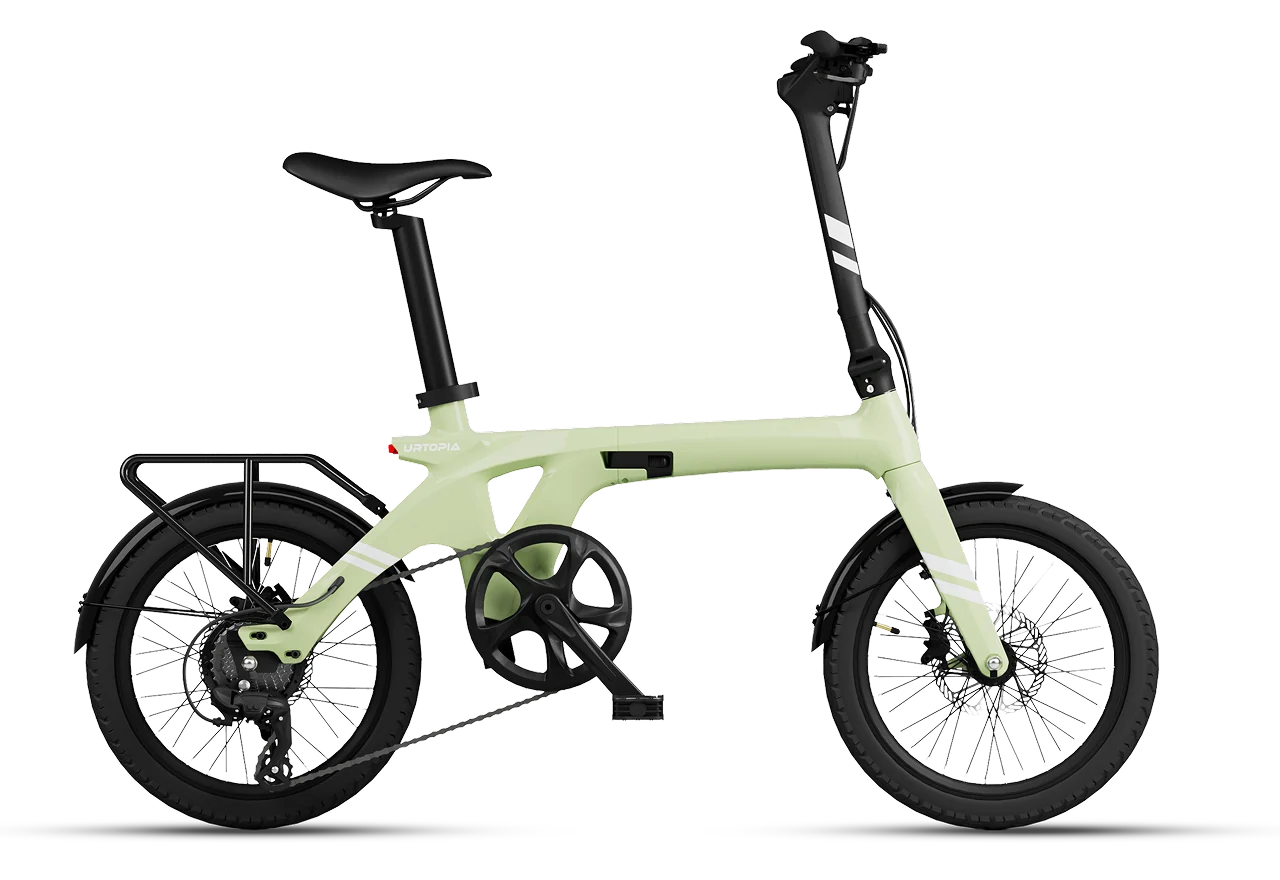

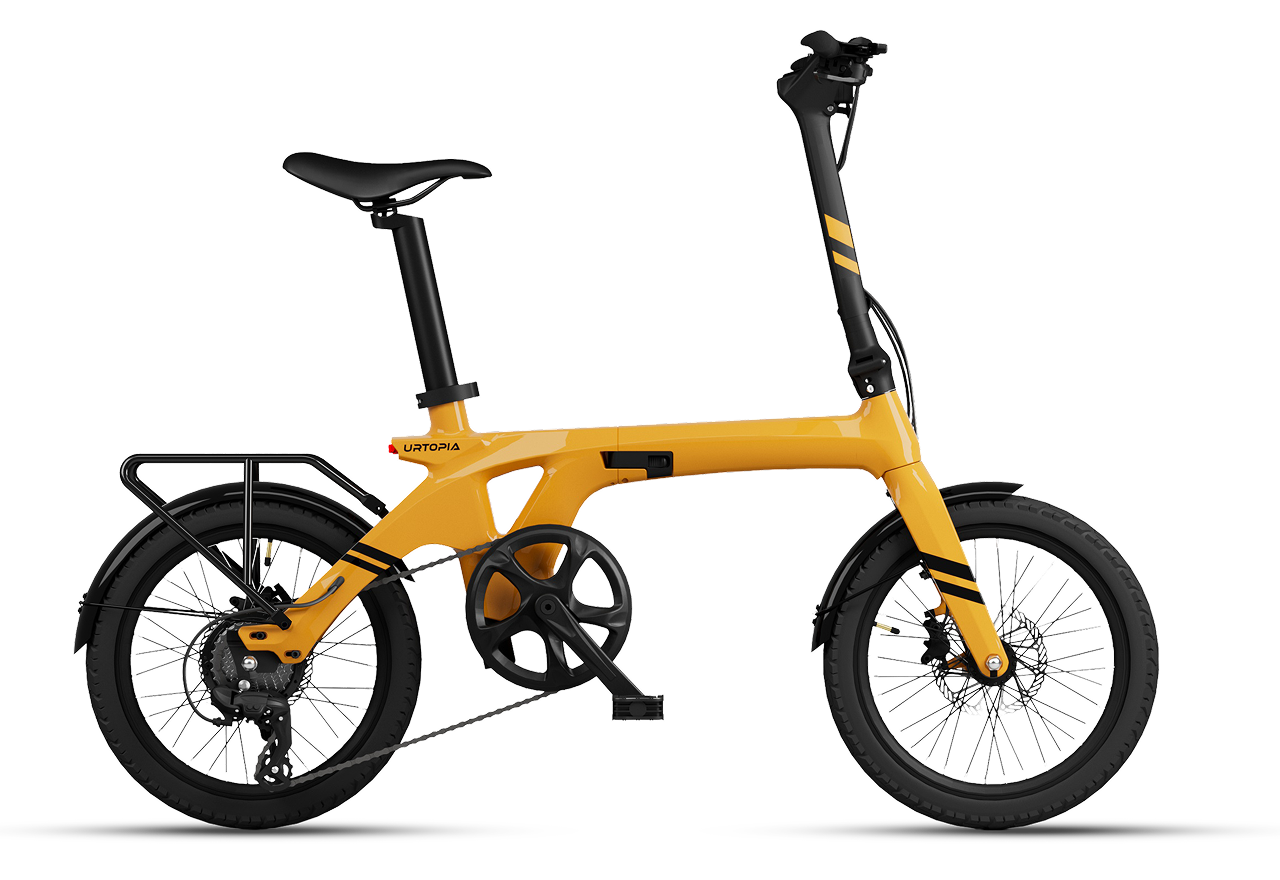

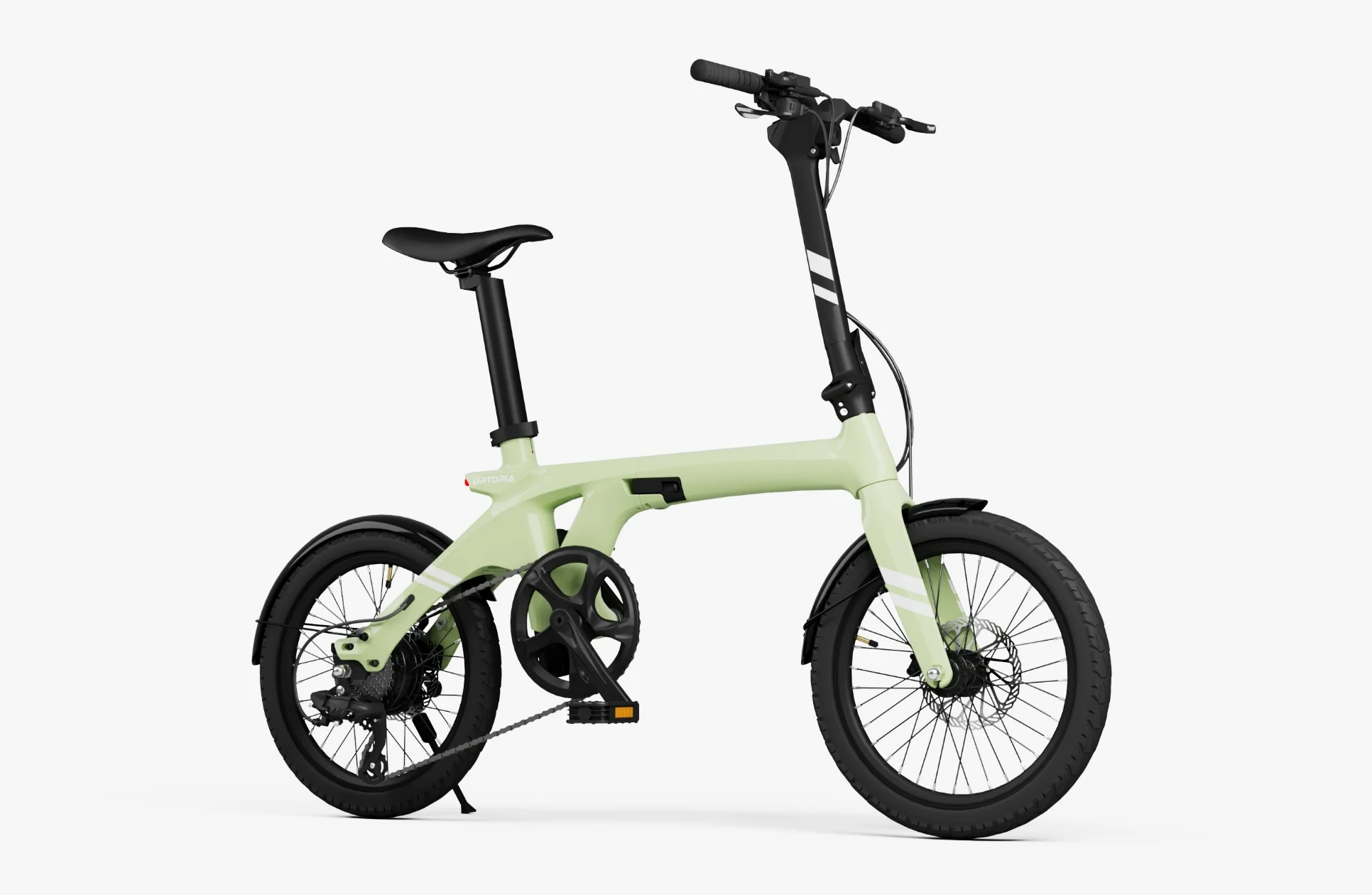

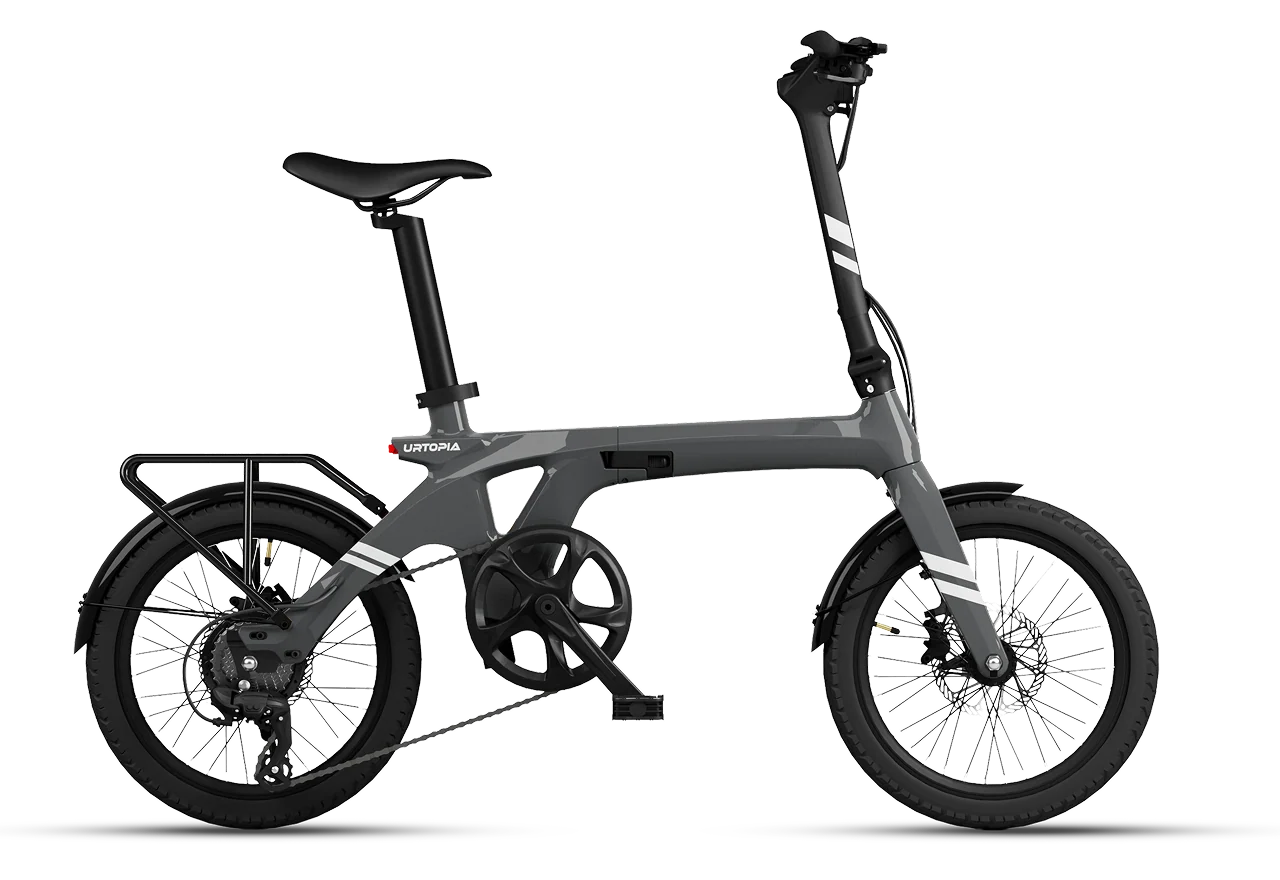

Carbon Fold 1 E-bike
Ideal use
Commuter
Bike Weight
34.2 lbs (15.5kg)
Net Weight
31.7lbs（14.4kg）w/battery
27.6lbs（12.5kg）w/o battery*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
27.6lbs（12.5kg）w/o battery*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
Material
Carbon fiber frame & fork
Folding
Yes
Frame style
Step-Over
Pedal Assist Range
Up to 37 miles
*The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
Top Speed
20mph
Total Payload Limit
220lbs
Rider Height
5’1” – 6’1”
Brakes
TEKTRO 2-piston hydraulic disc brakes
Wheels
Kenda K841 18″ x 2.0″
Bike Water Resistance
IP65
Ebike System
Motor Power
Rated Power 250W (Peak Power 440W) rear hub
Motor Max. Torque
26Nm
Battery
36V 7Ah (252Wh) Seat Post Battery, UL 2271 Certified (TUV Rheinland)
External Battery
No
Pedal Assist
4 levels
Charger
36V 2A Charger, DC Head, 4 Hour Charging Time
36V 4A Fast Charger, 2.5-Hour Charging Time
36V 4A Fast Charger, 2.5-Hour Charging Time
Display
2.0” Color LCD display
Sensors
Torque sensor, accelerometer
Lights
Front: External headlights 160LM
Rear: Integrated rear light
Rear: Integrated rear light
Throttle
No
Class
Class 1
Drivetrain
Chainrings
53T
Crankset
Aluminum, length 170mm
Cassette
11-32T, 8 Speed
Chain
Shimano 8-Speed
Rear Derailleur
Shimano Altus 8-Speed
Shift Lever
8 Speed Trigger
Pedals
Foldable PC pedals, 98x72x26mm
Cockpit
Grips
Durable ergonomic grips, lockable

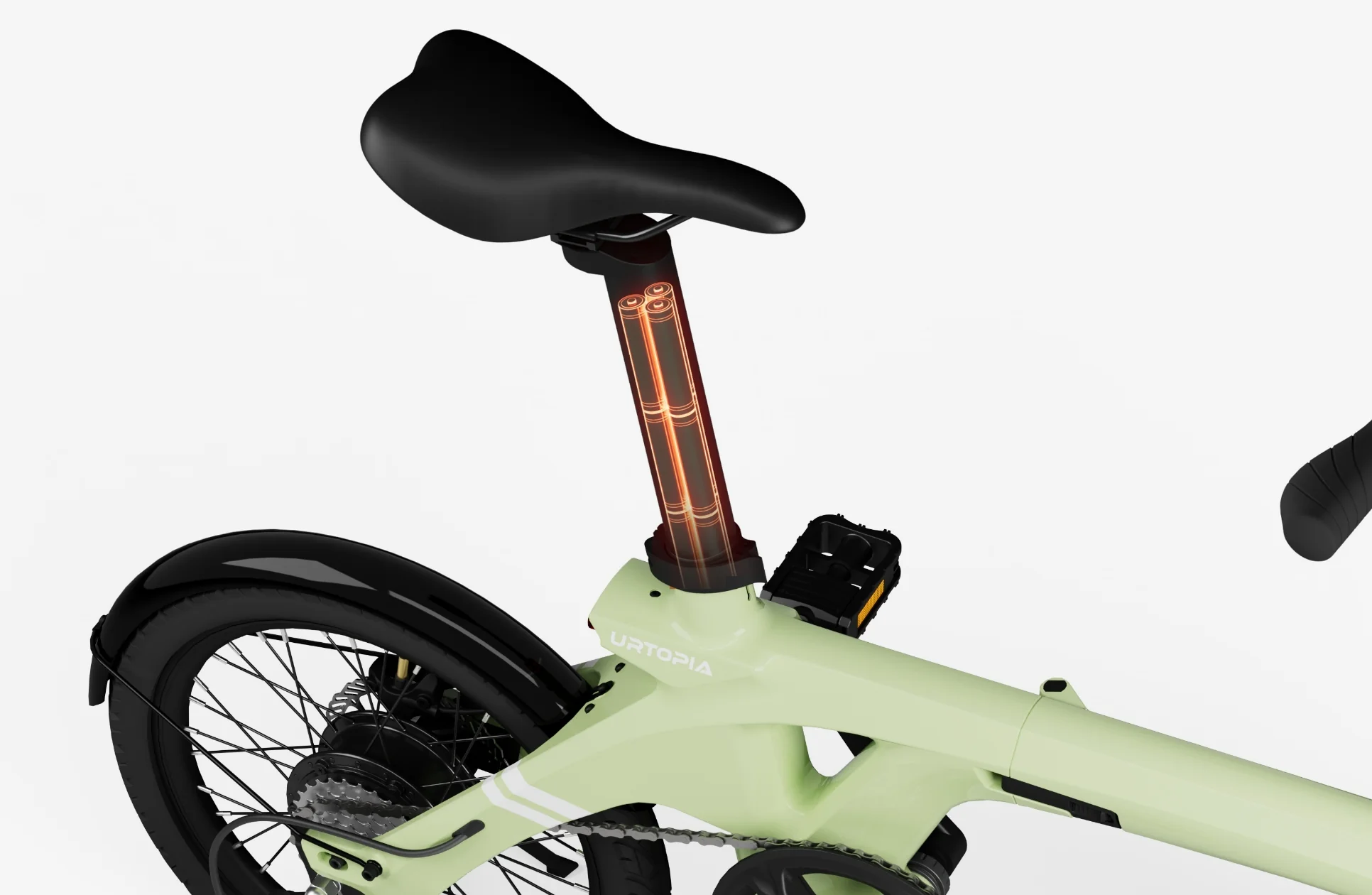

Seat Post
Aluminum seat post with intube battery diameter 46mm, adjustable range 180mm
Fork
Carbon fiber fork
Saddle
Velo Saddle, 272x158x70mm

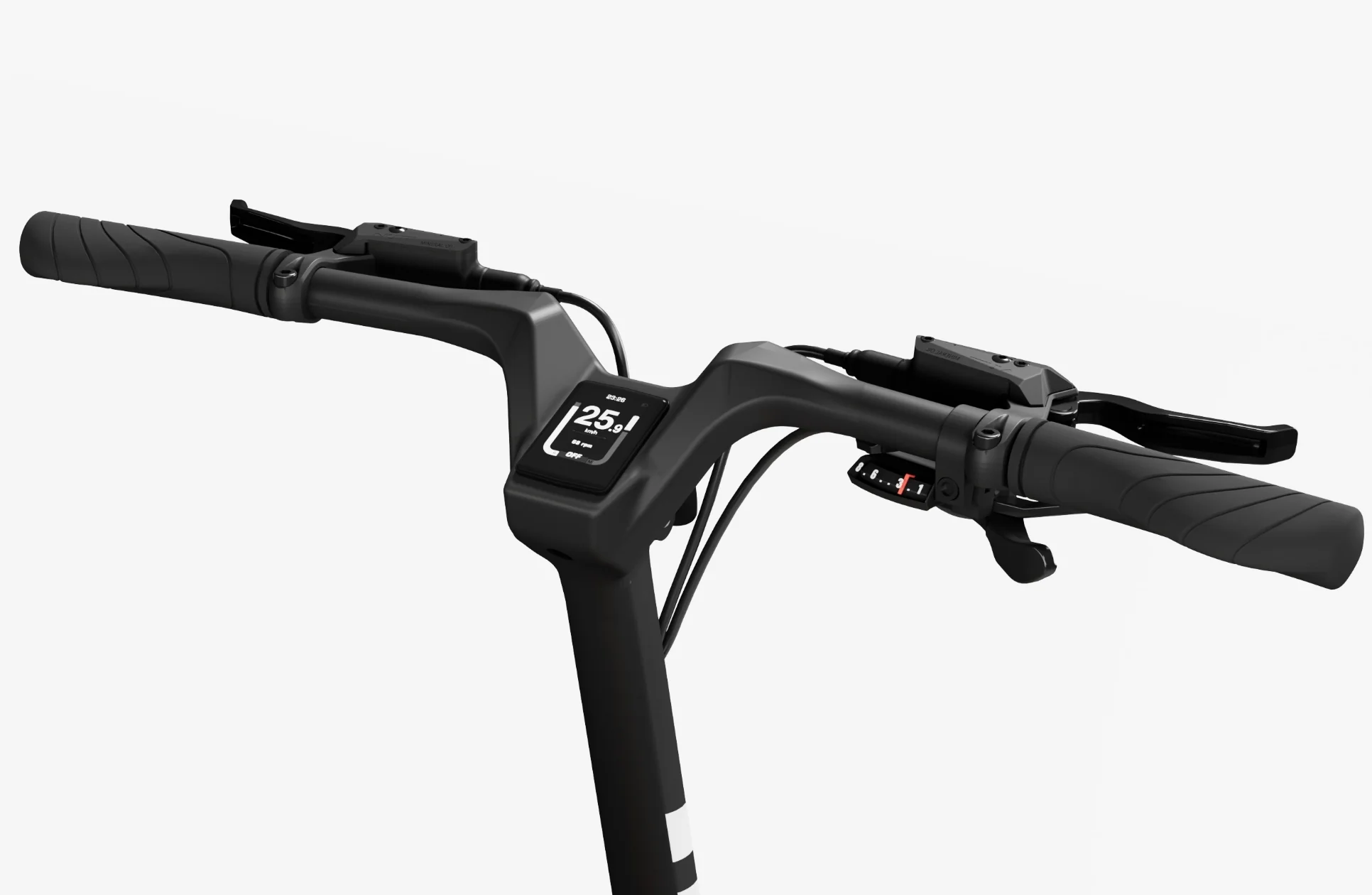

Handlebar
Carbon fiber, Integrated Display, 23.4″ (595mm) Wide
Stem
Aluminum + carbon fiber folding stem
Smartbar
Smartbar features
No
Connectivity
No
Theft Defenses
No
App
No
SIM/Connect Service
No
Size Guide
Recomm. rider height 5’1’’~6’1’’
A. Adjustable seat range
B. Highest point of the seat post
C. Overall length
D. Handlebar grips height
E. Headset height
F. Seat tube length
G. Wheel diameter
H. Wheelbase

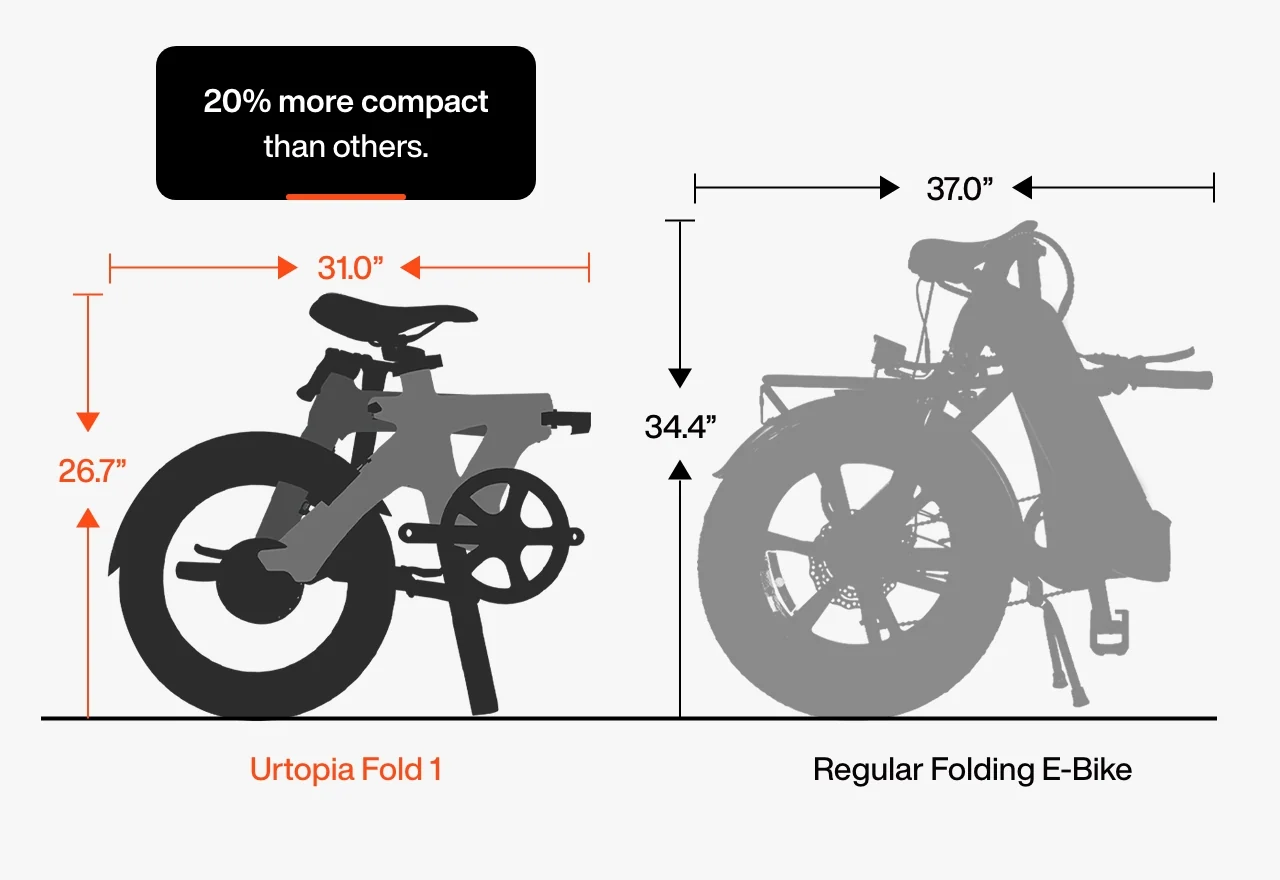

I. Height after folding
J. Overall length after folding
K. Standover height
L: width after folding
One Size
5’1’’~6’1’’
220 mm(9’’)
1020 mm(40’’)
1480 mm(58’’)
1090 mm(43’’)
400 mm(16’’)
310 mm(12’’)
450 mm(18’’)
1000 mm(39’’)
680 mm(27’’)
800 mm(31’’)
550 mm(22’’)
500 mm(19’’)
