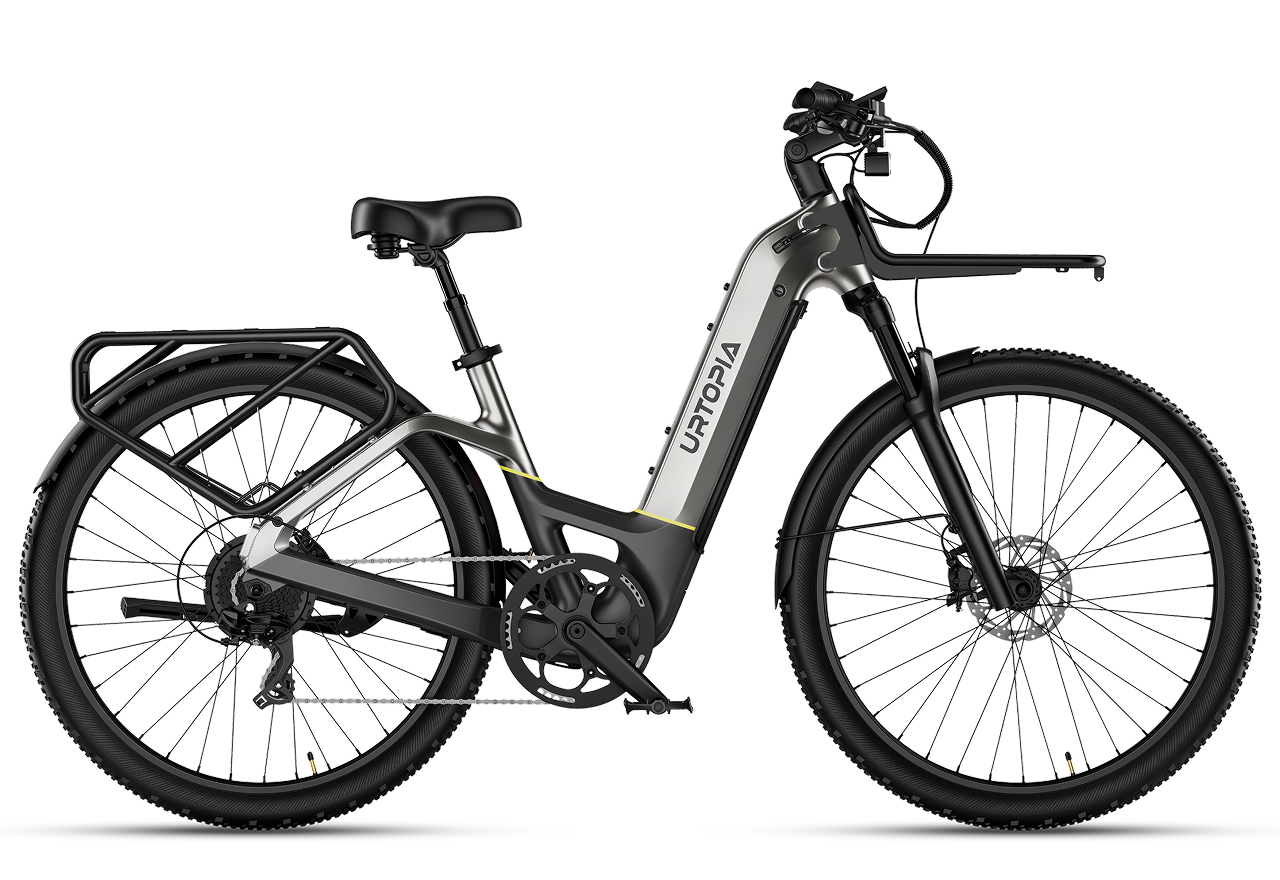

Name: URTOPIA First Carbon 750W Electric Bike | Carbon Atom
SKU: 77410
Availability: InStock

AT CHECK OUT CHOOSE FREE SHIPPING
FREE SHIPPING NOT AVAILABLE FOR ALASKA,HAWAII, CANADA CHOOSE WORLDWIDE SHIPPING

( Please email or call us for a shipping quote or choose standard worldwide shipping)

Please note: All sales final. Item can’t be returned.

The first carbon 750W all-terrain electric bike. Urtopia Atom: 93-mile range, 1250W peak, carbon comfort for city roads & trails.

Size Guide:

Recomm. rider height

5’3’’ – 6’3’’

A. Top Tube Length

B. Max Seat Height

C. Min Seat Height

D. Overall Length

E. Wheelbase

F. Wheel Diameter

G. Head Tube Length

H. Handlebar grips height

I. Standover Height

One Size

5’3’’ – 6’3’’

599 mm (23.6’’)

1000 mm (39.4’’)

850 mm (33.5’’)

1830 mm (72.0’’)

1118 mm (44.0’’)

700 mm (27.6’’)

143 mm (5.6’’)

1070 mm (42.1’’)

440 mm (17.3’’)

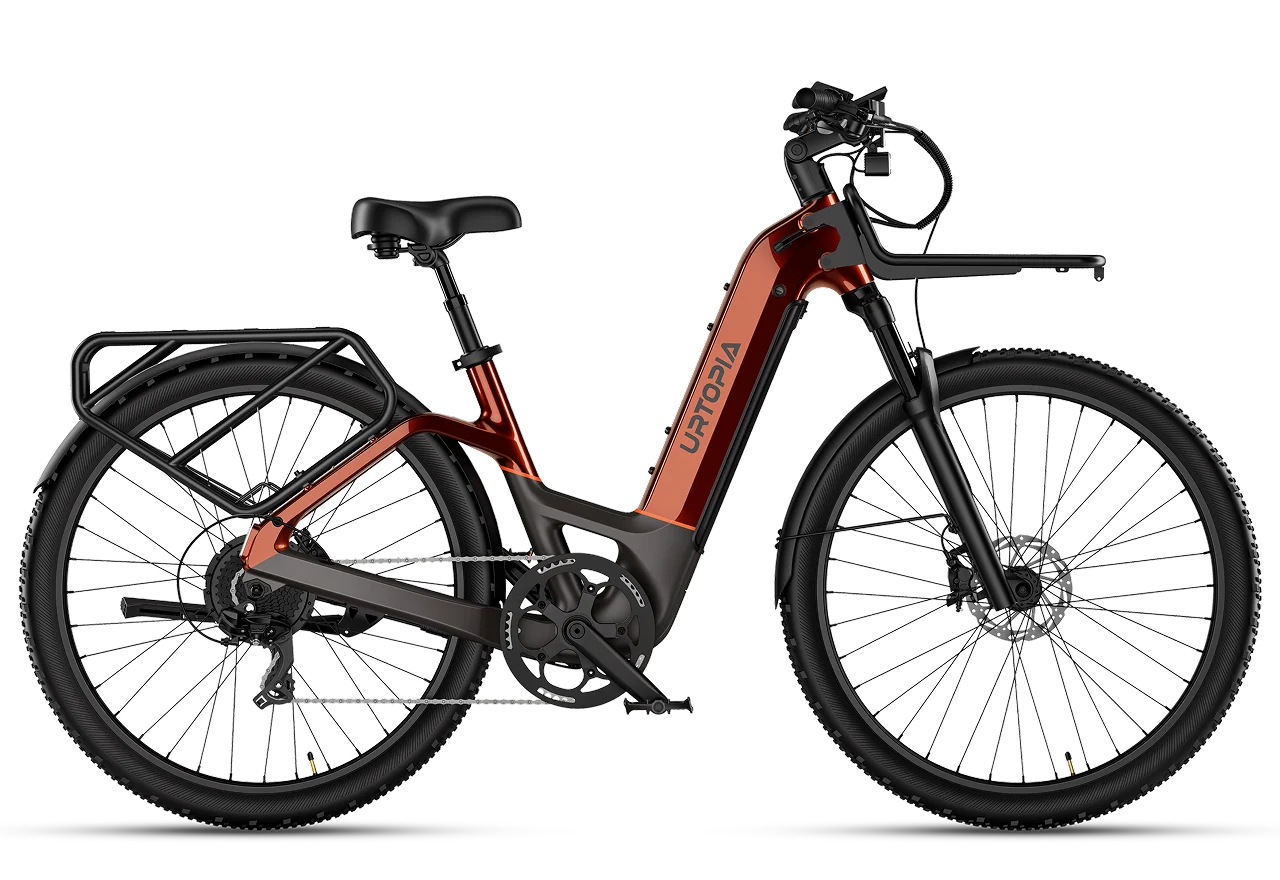

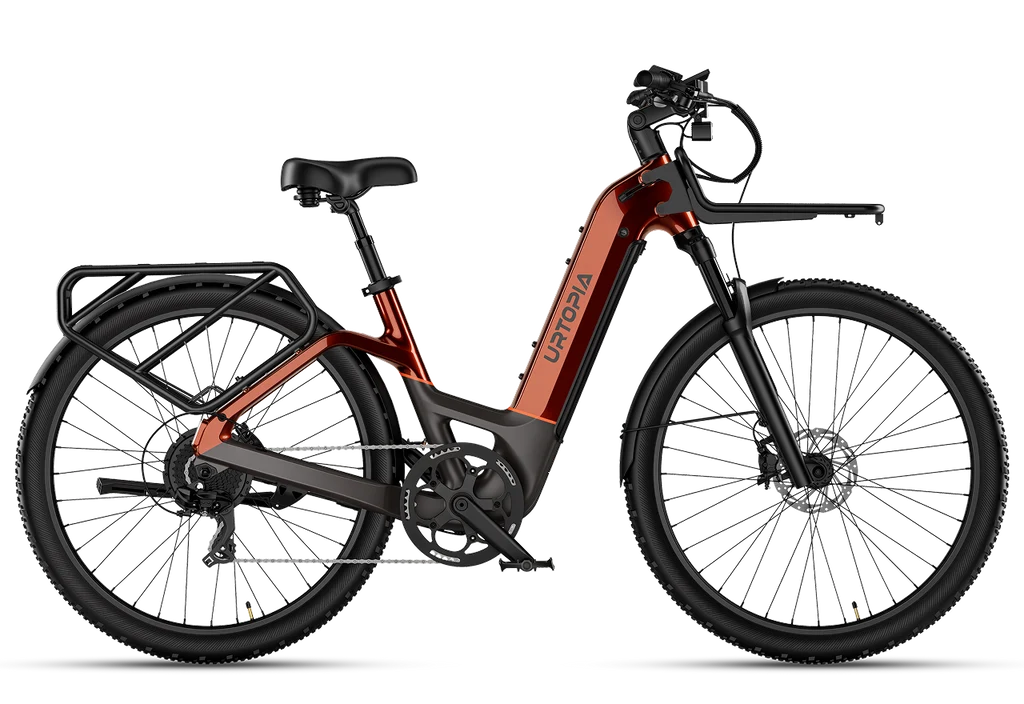

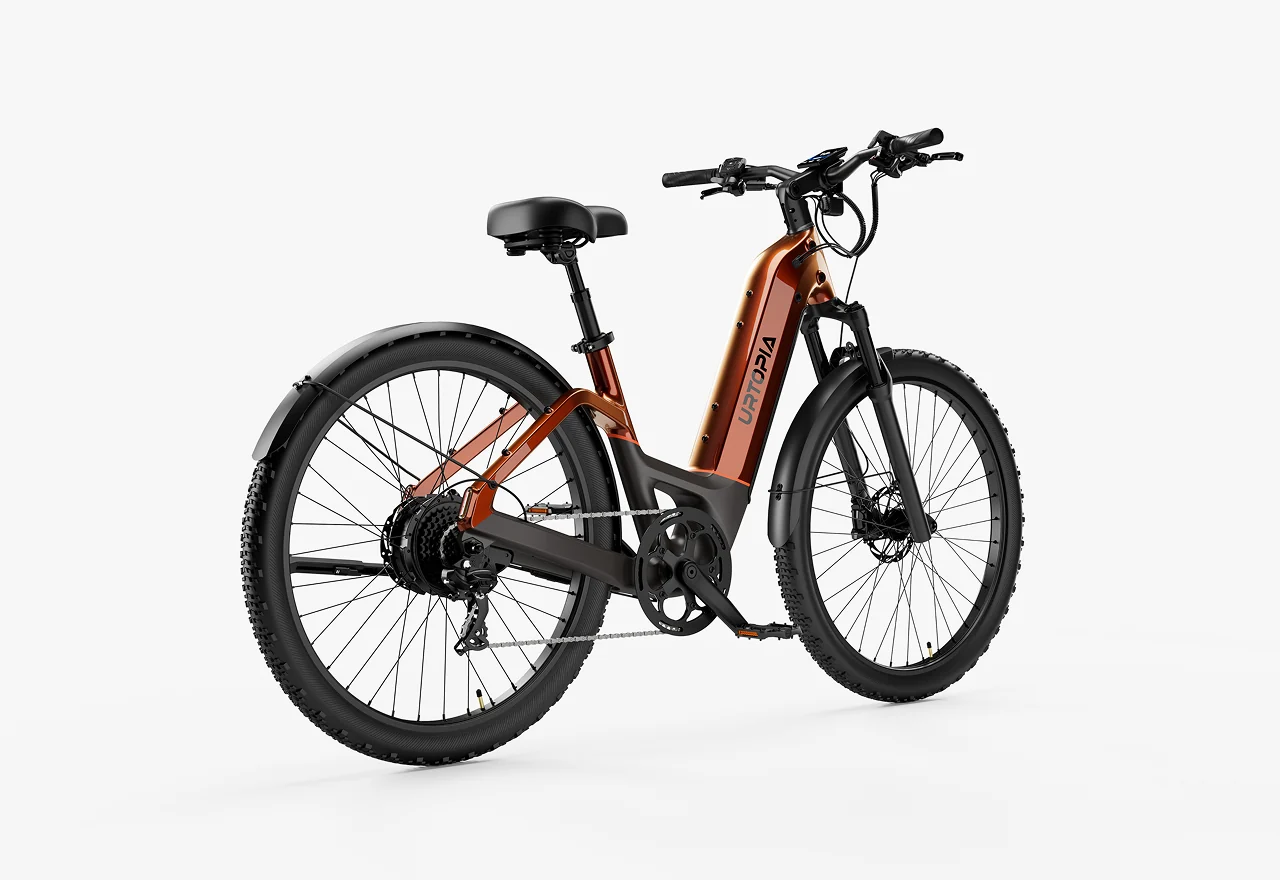

Carbon Atom E-Bike

Specs

General Info

Model: Carbon Atom E-bike

Ideal use: All Road

Bike Weight: 61.7 lbs (28kg)

Net Weight: 58 lbs (26.5kg) w/ battery / 50 lbs (22.7kg) w/o battery

*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.

Material: Carbon fiber frame

Folding: No

Frame style: Step-Through

Pedal Assist: Range Up to 93 miles

*The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.

Top Speed: 28mph

Total Payload Limit: 330 lbs

Rider Height: Regular: 5’3″ – 5’11”

Brakes: TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor

Wheels: Kenda 26″ x 2.4″, Puncture-Resistant Tires

Bike Water Resistance: IP65

Ebike System: Motor Power

Rated Power: 750W (Peak Power 1250W) rear hub

Motor Max. Torque: 90Nm

Battery: 48V 17.4Ah (835Wh) LG Li-ion, High-Performance Cell, Removable, UL 2271 Certified

External Battery: No

Pedal Assist: 4 levels

Charger: 48V 4.5A Fast Charger, 4-Hour Charging Time

Display: 3.5″ color LCD

USB Charge: Yes

Sensors: Torque sensor

Lights Front: External light, 100 lux

Rear: Integrated rear light with turn signal & brake light

Throttle: Yes (up to 20mph)

Class: Class 2 or 3

Drivetrain

Chainrings: 52T

Crankset: Aluminum, length 170mm

Cassette: 12T-32T, 8-Speed

Chain: Shimano 8-Speed

Rear Derailleur: Shimano ACERA 8-Speed

Shift Lever: 8 Speed Trigger

Pedals: 9/16″ Alloy Platform

Cockpit

Grips: Durable ergonomic grips, lockable

Seat Post: Aluminum 30mm Travel Suspension Seatpost, 31.6mm Clamp,
Total Length: 355mm
Marked Range: 120mm

Fork: 80mm travel Aluminum suspension fork

Saddle: Comfort Saddle, 254x223x90mm

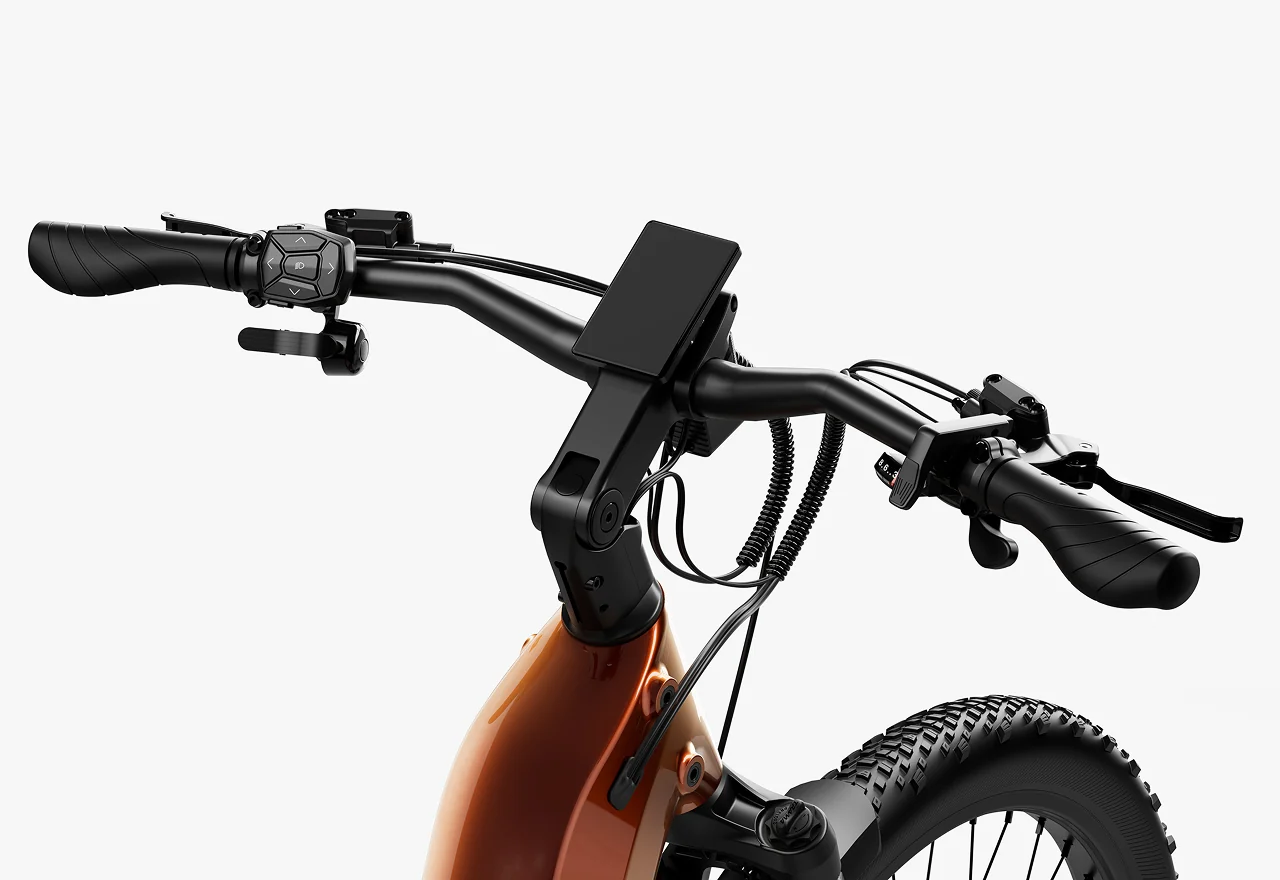

Handlebar: Aluminum, 31.8mm Clamp, 700mm Wide

Stem: Aluminum Stem, 0-90° Adjustable

Smartbar

Smartbar features: No

Connectivity: No

Theft Defenses: N/A

App: only for OTA

SIM/Connect Service: N

Toray® Carbon Fiber
15% Lighter

Motor Power
750W

Long Range
Up to 93 Miles

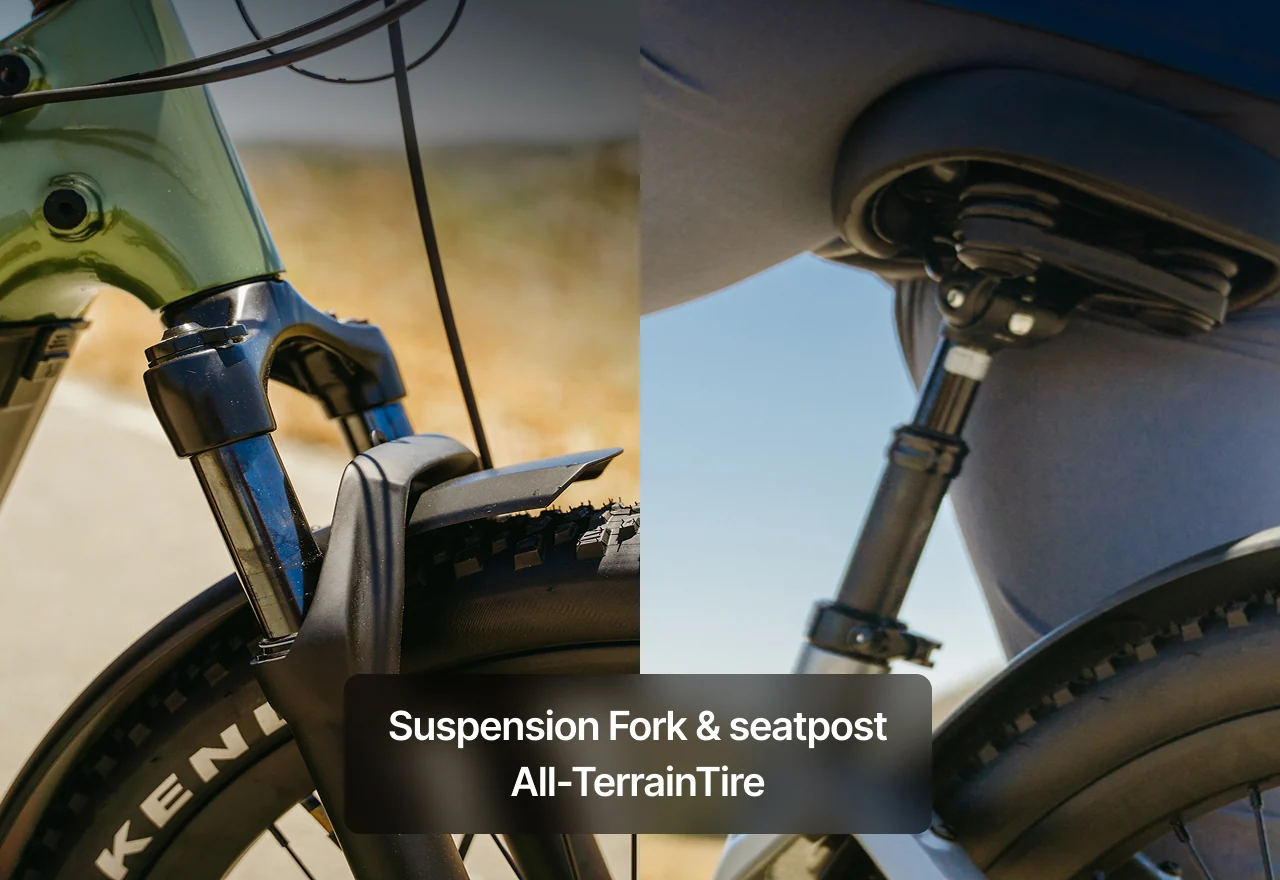

Suspension
Fork & Seatpost

Colorful Display
3.5″ LCD Screen

Safety Certified
UL 2849 & UL 2271

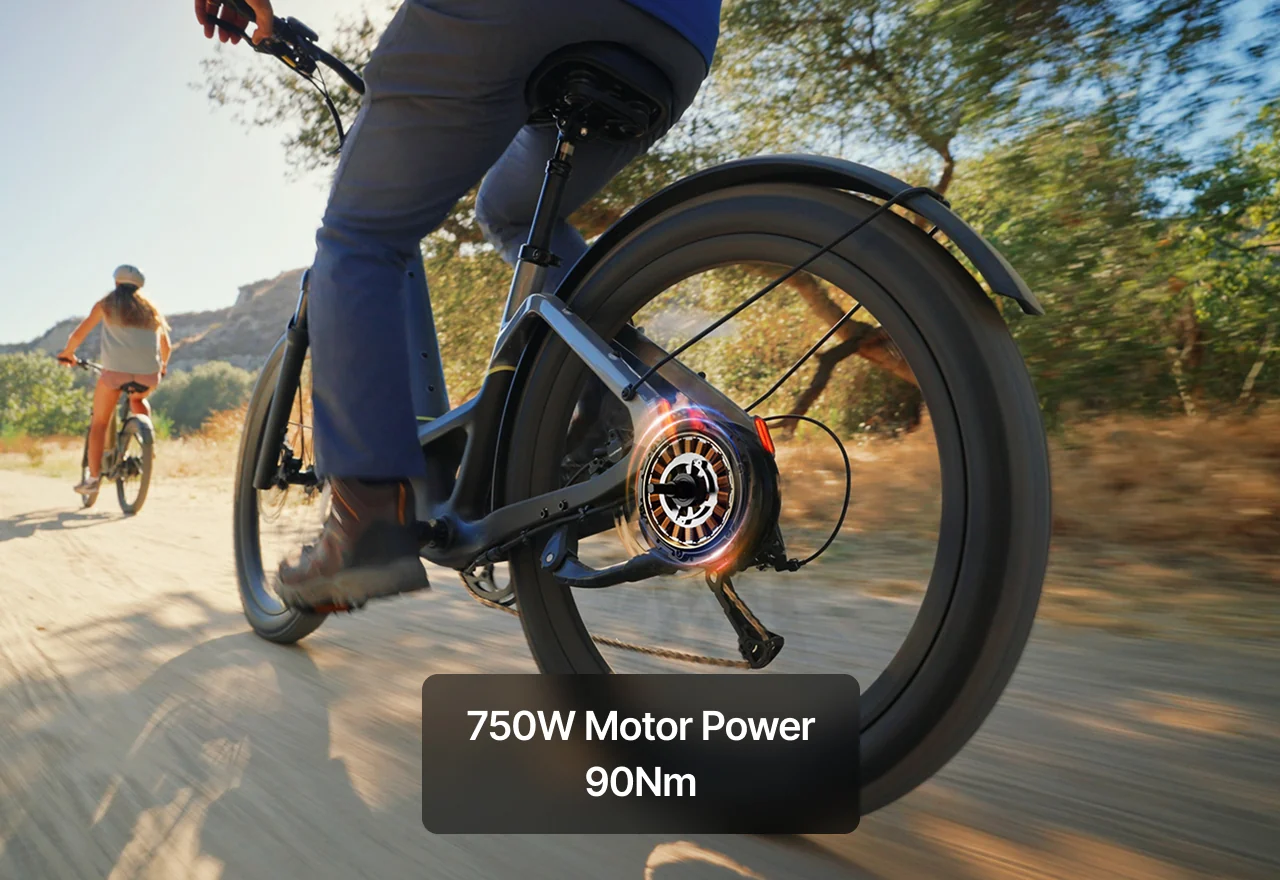

750W Power. Carbon Light.

A 750W motor with 90N.m of torque gives Atom confident acceleration, steady climbing power, and responsive support when the road gets demanding.

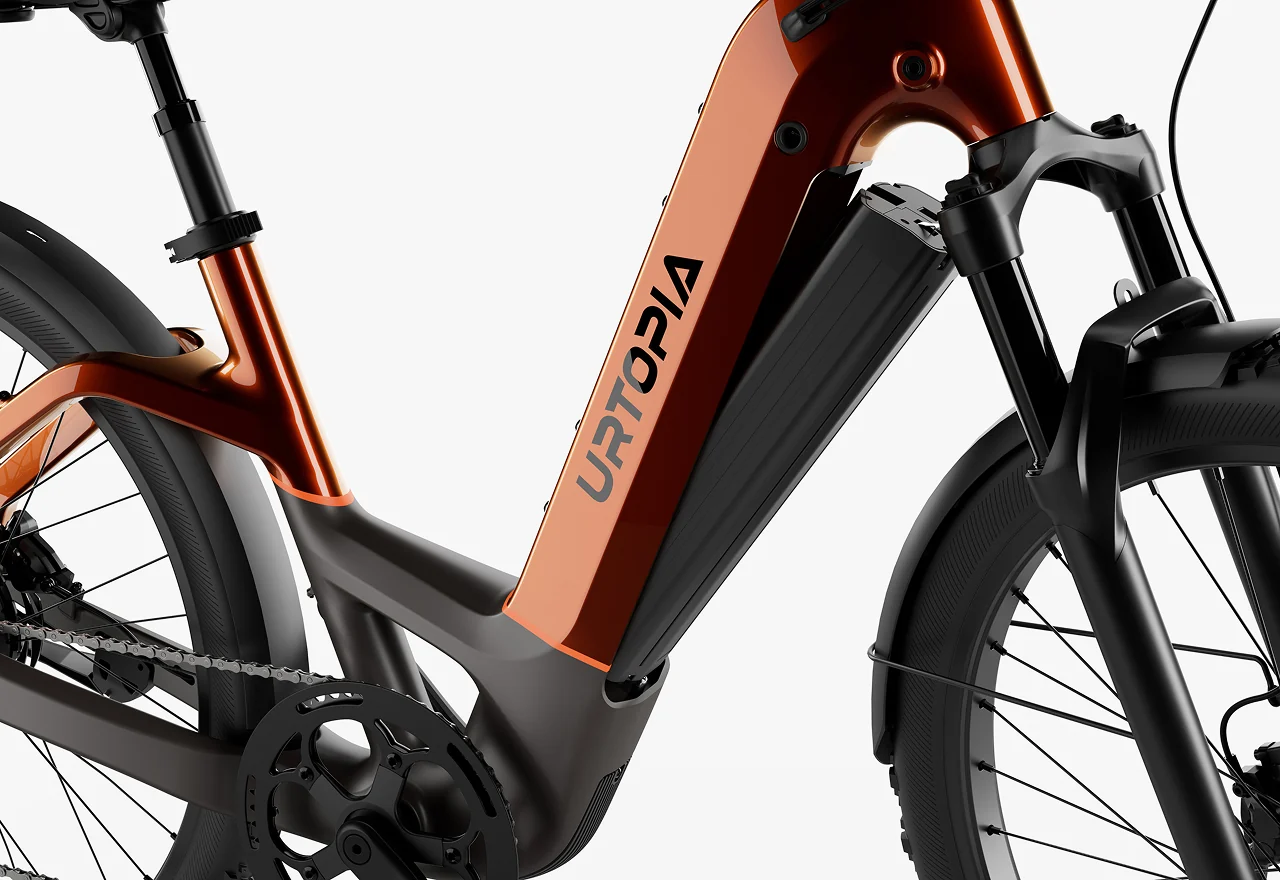

Ride Farther with an 835Wh Battery

With an 835Wh battery and up to 93 miles of pedal-assist range, Atom is built for long commutes, weekend routes, and fewer charging stops.

Why Carbon Fiber Is Worth It?

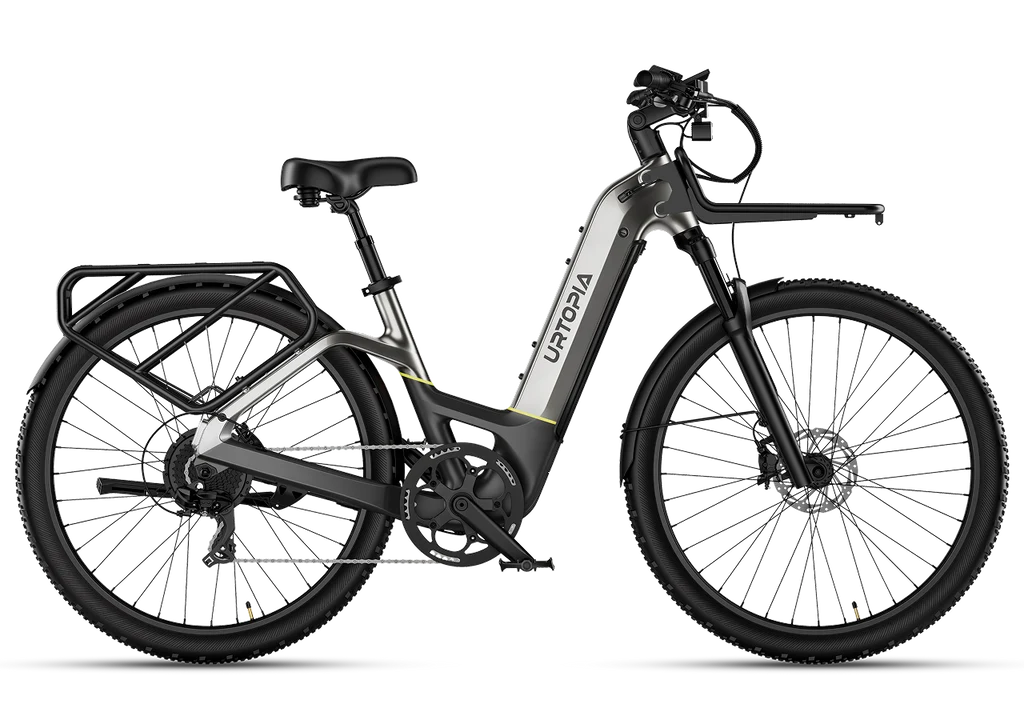

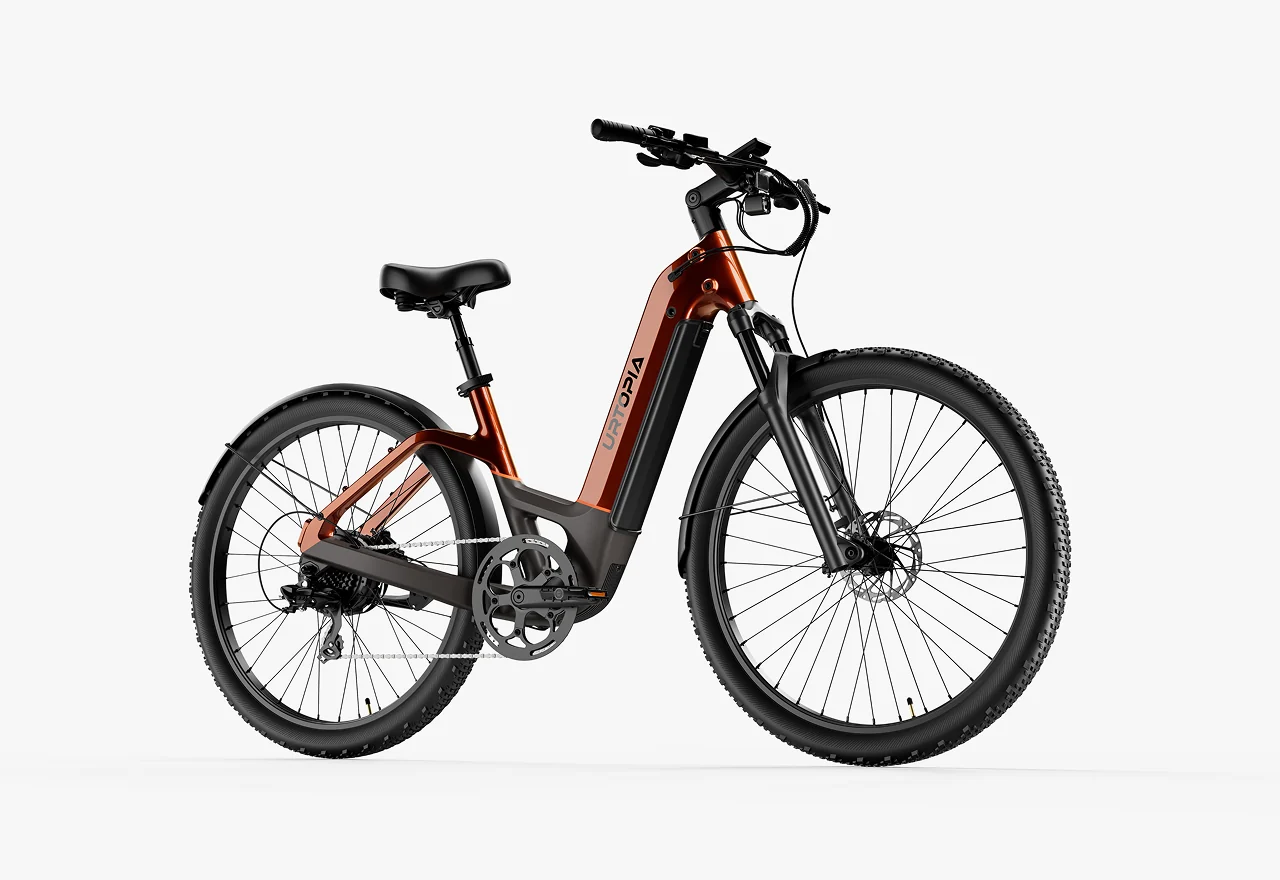

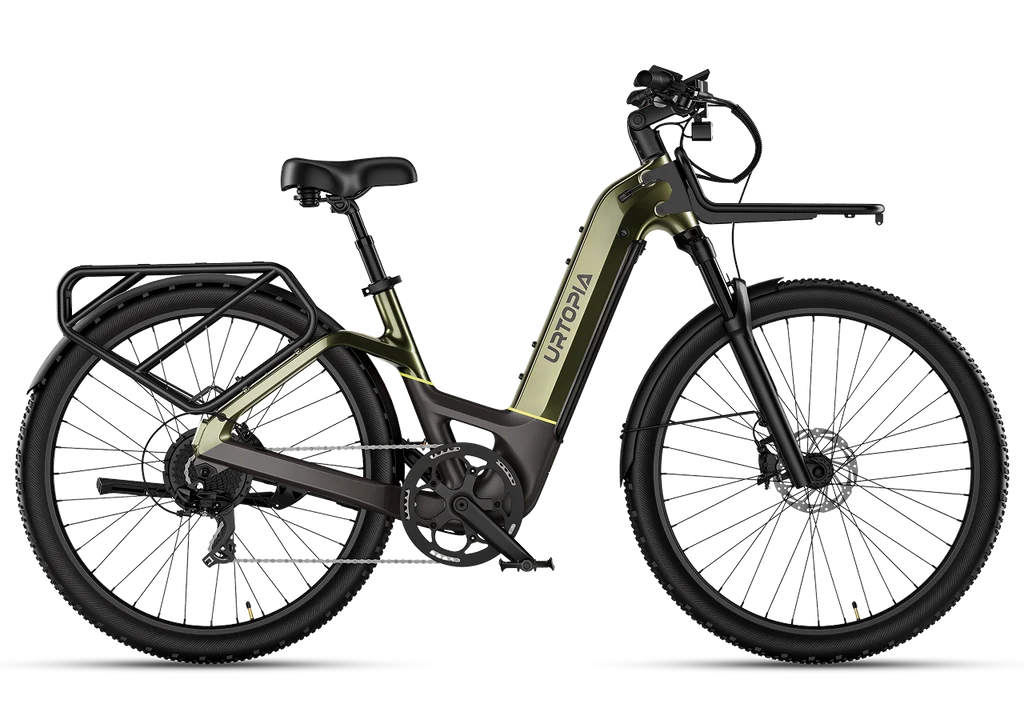

Size	Carbon Atom E-Bike Copper assembled, Carbon Atom E-Bike Copper Un-assembled in a box, Carbon Atom E-Bike Moonlight assembled, Carbon Atom E-Bike Moonlight Un-assembled in a box, Carbon Atom E-Bike Olive assembled, Carbon Atom E-Bike Olive Un-assembled in a box
