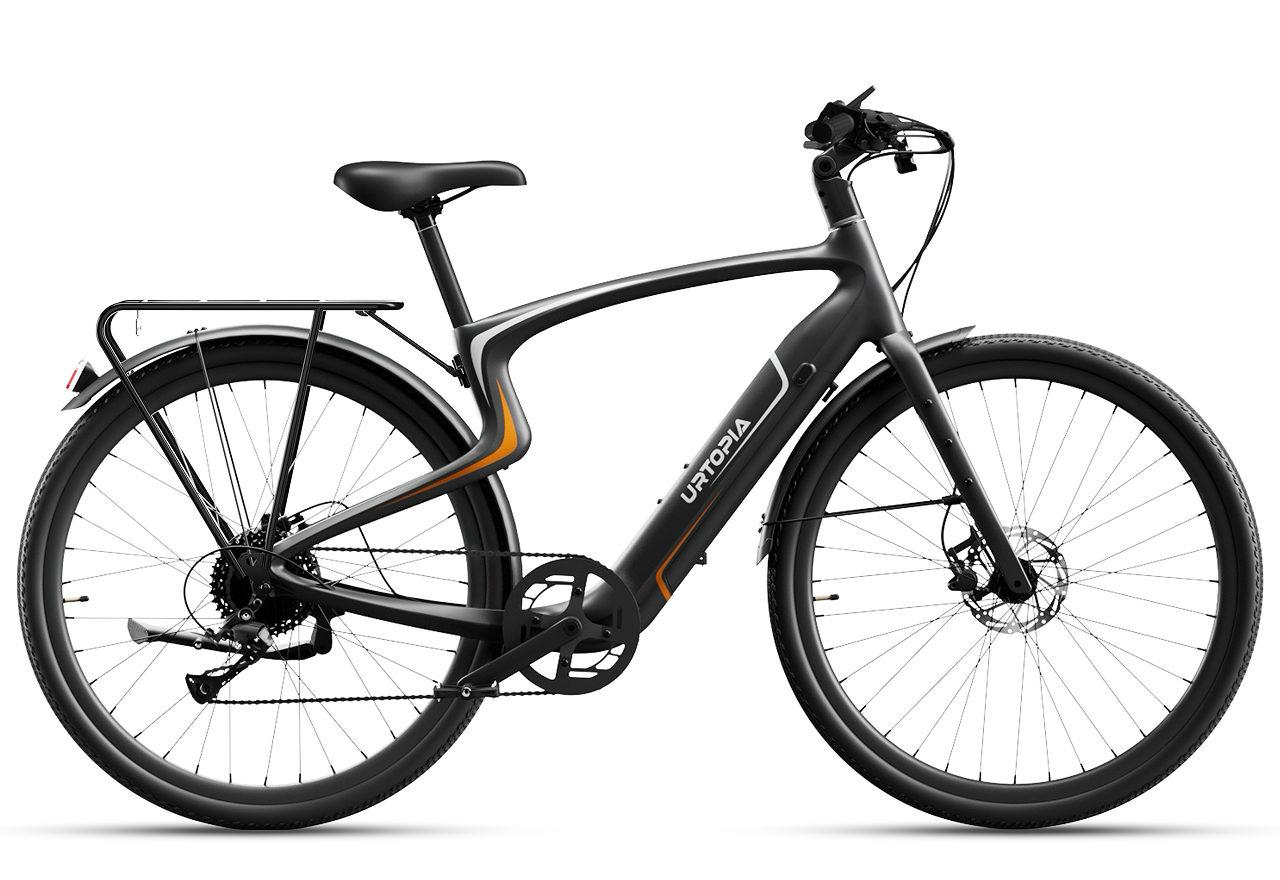

Urtopia Carbon Classic E-Bike
The Carbon Classic E-Bike by Urtopia features a lightweight carbon fiber frame, delivering smooth, effortless urban rides with exceptional comfort and performance.
Toray® Carbon Fiber41 lbs Lightweight
All-day RangeUp to 72 miles
Tap to GoThrottle
Torque Sensor0 Response Latency
Colorful DisplayLCD Screen
Safety CertifiedUL 2849
Size Guide
Recomm. rider height
A. Max Seat Height
B. Min Seat Height
C. Handlebar grips height
D. Seat tube length
E. Wheelbase
F. Overall length
G. Wheel diameter
H. Top tube length (effective)
I. Head tube length
J. Standover height
Small
5’3’’~5’9’’
905 mm (36’’)
830 mm (33’’)
1100 mm (43’’)
421 mm (17’’)
1065 mm (42’’)
1766 mm (70’’)
702 mm (28’’)
594 mm (23’’)
152 mm (6’’)
779 mm (31’’)
Medium
5’7’’~6’1’’
965 mm (38’’)
905 mm (36’’)
1120 mm (44’’)
463 mm (18’’)
1093 mm (43’’)
1795 mm (71’’)
702 mm (28’’)
618 mm (24’’)
170 mm (7’’)
804 mm (32’’)
Large
5’11’’~6’5’’
1010 mm (40’’)
950 mm (37’’)
1130 mm (44’’)
498 mm (20’’)
1122 mm (44’’)
1824 mm (72’’)
702 mm (28’’)
653 mm (26’’)
180 mm (7’’)
833 mm (33’’)
General Info
Model: Carbon Classic E-bike
Ideal use: Commuter
Bike Weight: 41 lbs (18.6kg)
Net Weight
38 lbs (17.4kg) w/ battery
33 lbs (15.2kg) w/o battery*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
33 lbs (15.2kg) w/o battery*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
Material: Carbon fiber frame & fork
Folding: No
Frame style: Step-Over
Pedal Assist Range: Up to 72 miles
*The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
Top Speed: 20mph by default
25mph upon unlock
25mph upon unlock
Total Payload Limit: 240 lbs
Rider Height
Small: 5’3″ – 5’9″
Medium: 5’7″ – 6’1″
Large: 5’11” – 6’5″
Medium: 5’7″ – 6’1″
Large: 5’11” – 6’5″
Brakes: TEKTRO Hydraulic disc brakes with power cut-off sensor
Wheels: Kenda 700C x 40mm (45mm max.) tires
Bike Water Resistance: IP65
Ebike System
Motor Power: Rated Power 350W (Peak Power 500W) rear hub
Motor Max. Torque: 45Nm
Battery
36V 9.8Ah (352.8Wh) Samsung Li-ion, Removable, UL 2271 & EN 50604 Certified
External Battery: No
Pedal Assist: 4 levels
Charger: 36V 4A Fast Charger, 2.5-Hour Charging Time
Display: 3.5” Color LCD display
USB Charge: Yes
Sensors: Torque sensor
Lights Front: External light, 30 lux
Rear: Fender-mounted tail light with brake sensing
Throttle: Yes (up to 20mph)
Class: Class 2 by default
Class: 3 upon unlock
Class: 3 upon unlock
Drivetrain
Chainrings: 44T
Crankset: Aluminum alloy, 170mm
Cassette: 11T-40T, 8 speed
Chain: Shimano 8-Speed
Rear Derailleur: Shimano ACERA 8-Speed
Shift Lever: 8 Speed Trigger
Pedals: 9/16″ Alloy Platform
Cockpit
Grips: Durable ergonomic Grips, lockable
Seat Post: Aluminum Alloy, φ31.6mm
Total Length: 300mm (Size M & L), 250mm (Size S)
Marked Range: 100mm (Size M & L), 80mm (Size S)
Total Length: 300mm (Size M & L), 250mm (Size S)
Marked Range: 100mm (Size M & L), 80mm (Size S)
Fork: Carbon fiber fork
Saddle: COINLLI saddle, 268x173x71mm
Handlebar: Aluminum, 28.6mm Clamp, 720mm Wide
Stem: Aluminum Stem, 0-90° adjustable
Smartbar
Smartbar features: No
Connectivity: No
Theft Defenses: N/A
App: only for OTA
SIM/Connect Service: No
