The Y16 electric bike is a new product of COSWHEEL in 2014, equipped with a peak 1000W (rated 750W) motor, 15AH lithium battery, 52 miles (84km) of range, and a maximum speed of 28mph (45km/h). The Y16 rear suspension is equipped with dual suspension spring shock absorbers and retro angel headlights, making your ride safer.

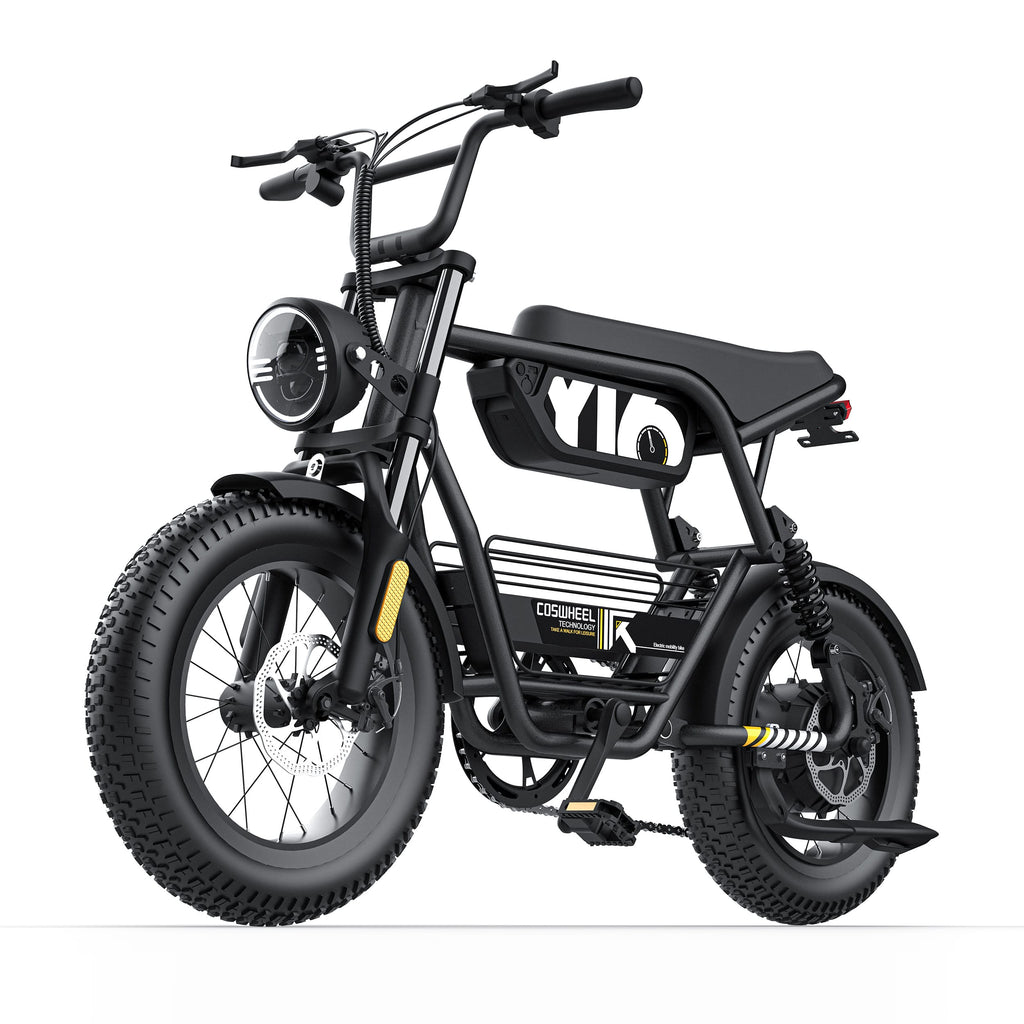

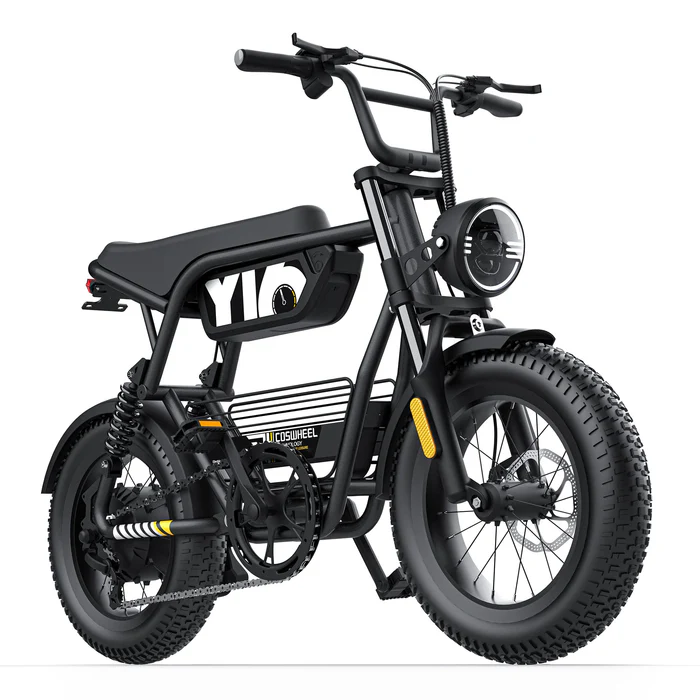

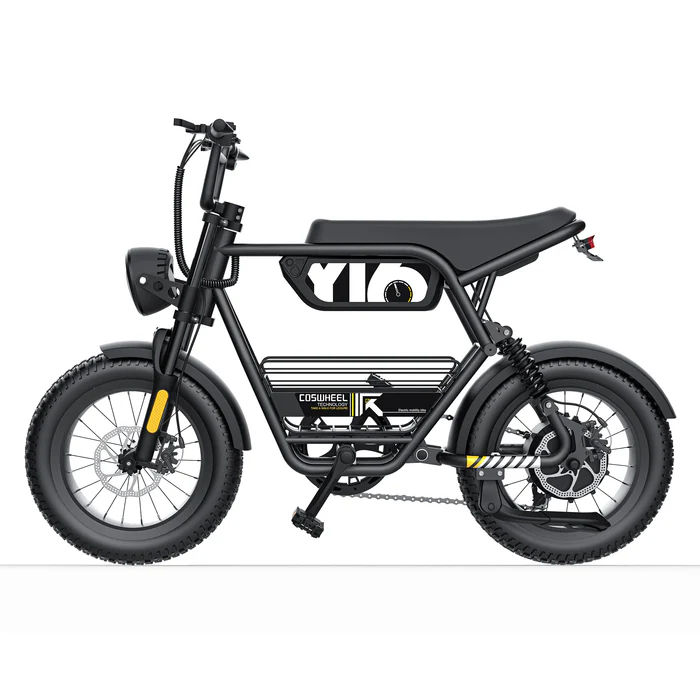

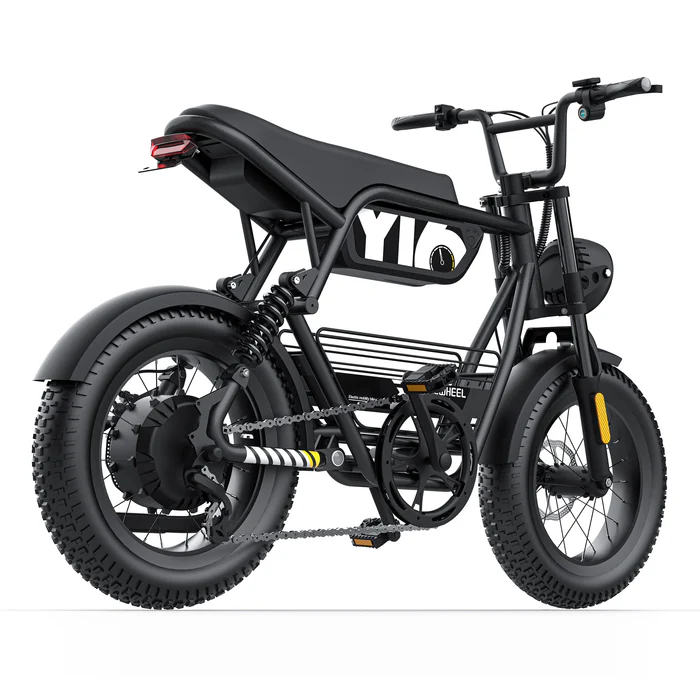

COSWHEEL Y16 Ebike
Y16 Specifications
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel

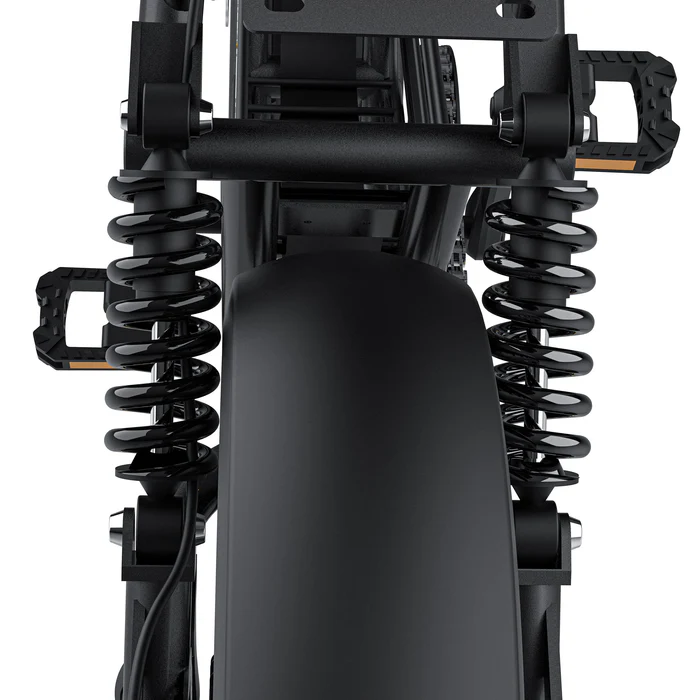

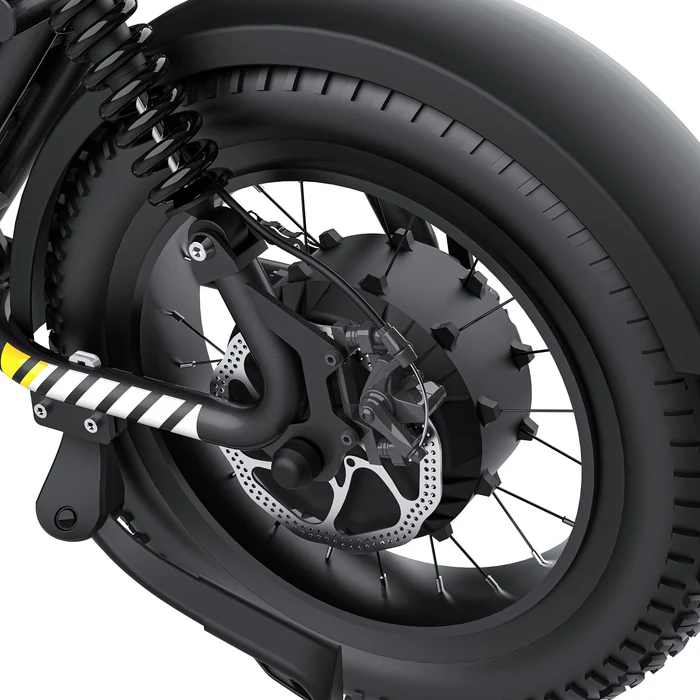

- Rear Suspension: Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm
- Brakes: Double Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires: ChaoYang All Terrain Tire 16″ × 4.0″ H5176 30TPI
- Throttle: Grip Twist Throttle
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours

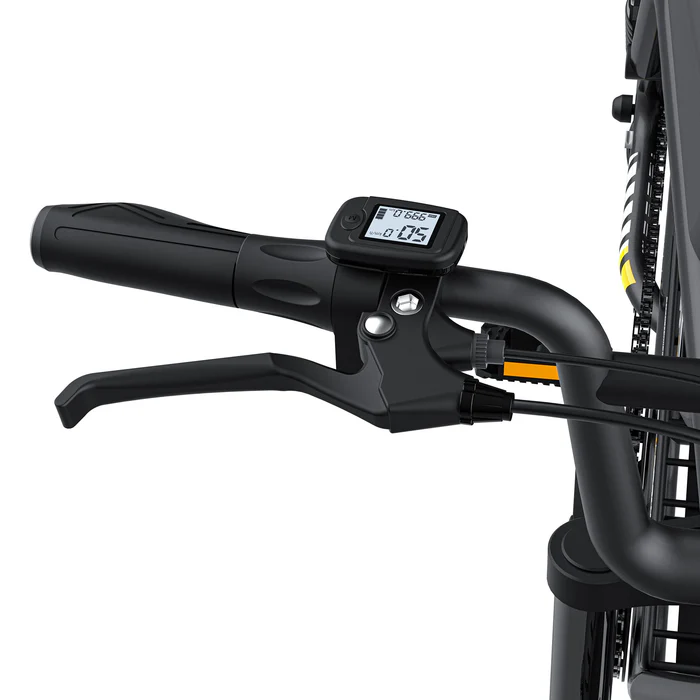

- Display: Easy Read LCD Display
- Controller: 48V 22A

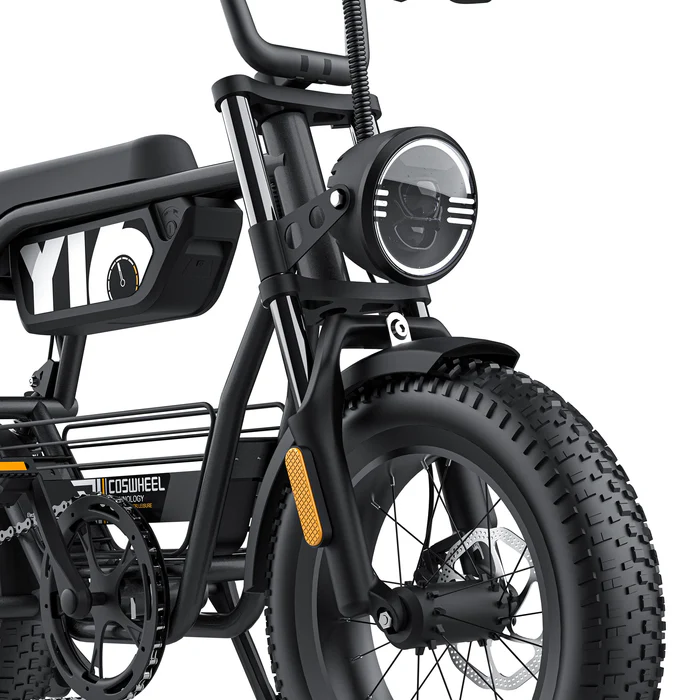

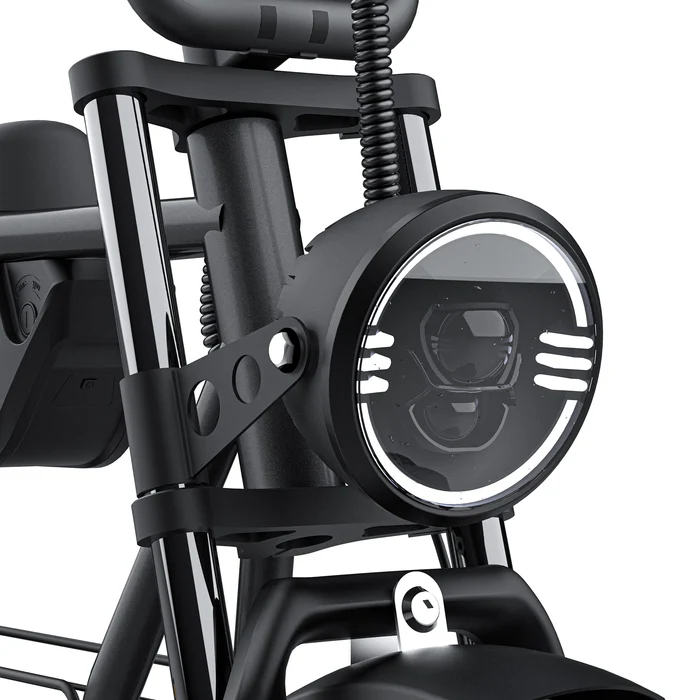

- Front Light: Classic Angel Eye Headlight, 120 LUX

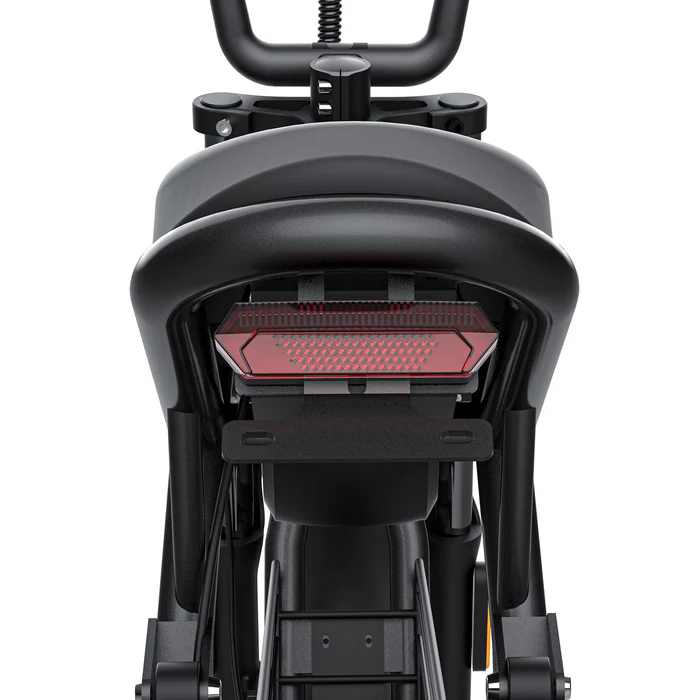

- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
- Frame: Iron Frame
- Pedal: Black
- Crank: 46T Double Cover*Ffish Shape
- Rear Derailleur: Single Speed
- Chain: Anti-rust, 116 Mesh
- Handlebars: Black, 25.4*L:640mm*H:180mm, 17°
- Suitable Height: 4’11” – 5’11” (4.9ft-5.9ft)
- Seat Height: 29.53″ (75cm)
- Bike Height: 39.37″ (100cm)
- Wheelbase: 38.58″ (98cm)
- Handlebar Width: 25.59″ (65cm)
- Bike Weight: ≥97lbs (with Battery) (≥44kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 60.24″ * 25.59″ *39.37″ (153*65*100cm)
- Package Size: 55.91″ * 12.60″ * 32.28″ (142*32*82cm)
